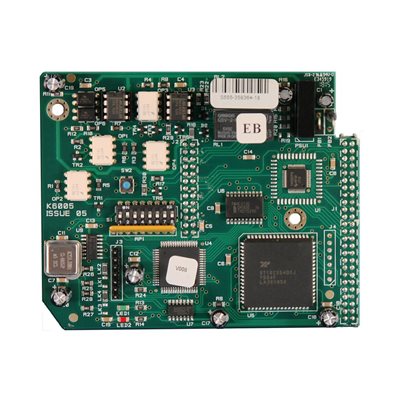

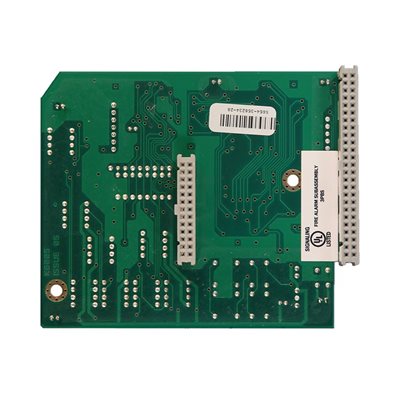

FN-4127-NIC – Network Interface Card

FN-4127-NIC – Network Interface Card for FireNET & FireNET Plus

Description
The FN-4127-NIC Network Interface Card allows for the expansion of up to 64 nodes (combination of FACP’s or Annunciators) on a single FireNET network wide system. Using the Loop Explorer configuration software up to 64 nodes can be programmed to respond to in a variety ways-independently or system wide.

Standard Features
• Allows for the expansion of up to 64 panels on a FireNET system
• Enables information to be transmitted between control panels
• Network protocol designed for tolerance to interference and data corruption
• Each card configured to a unique address through use of a dipswitch
• Transmission distance of up to 4,000 ft.
• Uses standard type Belden cable suitable for RS-485 applications
• Simple 2-wire loop connection
• Flexible configuration options
• Network wide Cause & Effect logic
• Fully secure against short or open conditions
