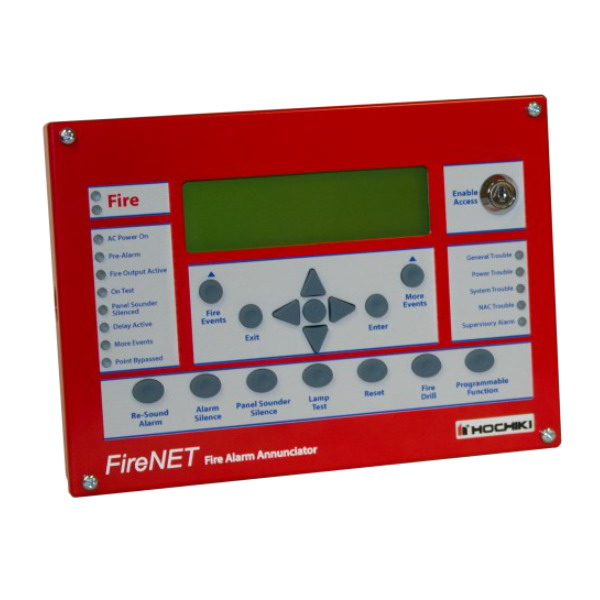

FN-LCD-S-R – Serial LCD Annunciator (Red)
Description
The FN-LCD-S serial annunciator provides a convenient and cost effective remote annunciator solution. Up to 15 FN-LCD-S annunciators can be connected to the slave RS-485 port of the FireNET® control panel or network annunciator. The FN-LCD-S’s large 320 character display and navigation buttons are a complete mimic of the FireNET® control panel display. The use of a common interface allows the user to easily operate the FN-LCD-S as if he were operating the FireNET® control panel directly. Security is established by the use of a password or firefighters enable key. Designed to be aesthetically pleasing, the FN-LCD-S is available in red or gray enclosures. The FN-LCD-S can be surface or flush mounted without the need for a trim ring.
Standard Features
- UL 864 9th Edition Listed
- Large 320 character liquid crystal display (8 line x 40 character) allows viewing of system status
- LED indicators for Fire, Supervisory Alarm, Pre-Alarm, Fire Output Active, AC Power On, On Test, Panel Sounder Silenced, Delay Active, More Events, Point Bypassed, General Trouble, Power Trouble, System Trouble & NAC Trouble
- Same controls as the FireNET® fire panel (Reset, Panel Sounder Silence, Lamp Test, Alarm Silence, Re-sound Alarm, Fire Drill, Programmable Function, More Events, More Fire Events, Enter & Exit)
- Up to 15 FN-LCD-S serial annunciators may be connected to a FireNET® control panel or network annunciator
- Resides on the FireNET® slave RS-485 line
- Local piezo sounder for event notification
- Supports user codes & firefighter key to enable access & controls
- Powered by FireNET® Aux 24VDC or UL fire listed Aux. 24VDC supply
- Available in red or gray, and can be surface or flush mounted
- Built-in help & alarm information screens
- Fire drill function
