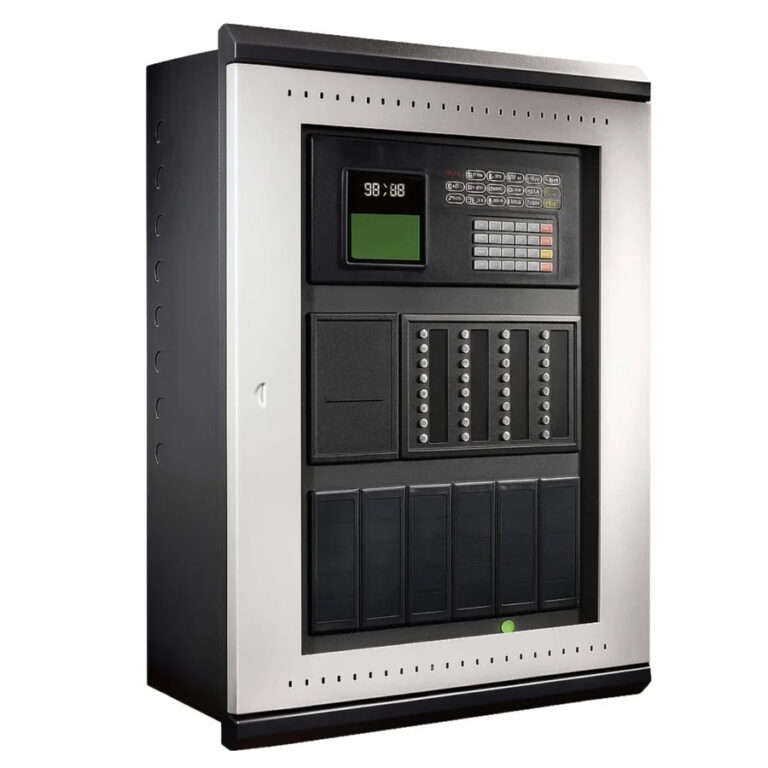

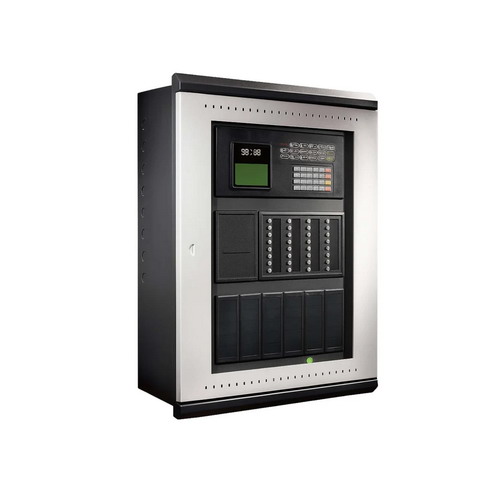

GST200N – Addressable Fire Alarm Control Panel

Addressable Fire Alarm Control Panel
GST200N Series

Description
GST200N Intelligent Fire Alarm Control Panels are designed in comply with EN54-2 and EN54-4 standard with qualities of simple installation, operation, and easy maintenance. 1-2 loop addressable panel is suitable for small buildings like office, restaurant, store, shop, etc.

Features and Benefits

• Max. 30 zones. Each zone has its own alarm and fault/disable indicator and a label
• Single loop panel capacity 235 addressable devices
• 2-loop panel capacity 477 addressable devices
• Compatible with GST intelligent and digital products
• 8X18 characters LCD screen
• 15 LEDs to display important information
• Non-Volatile memory ensures no loss of data even if power supply is accidentally removed
• Wide range power supply
• Sounder strobe output provides 0.5A/24V load, compatible with GST conventional sounders
• RS232 interface enables communication with PC
• RS485 or CAN interface enables networking

Technical Specifications

• Primary Supply: 100-240VAC, 50/60HZ
• AC Current: 1.5A
• Standby Power: 21AH/24VDC
• Max.Battery Resistance: 1Ω
• Loop Capacity: 1 or 2 Loops
• Zone Capacity: 30
• Device Capacity:  235 for 1st loop and 242 for 2nd loop
• Printer: Optional Thermal / ASCll code printer
• Display: 8(lines)x18 (characters),LCD
• Network(RS485): Class A, Max. 32 panels (by card)
• Network(CAN): Class A, Max. 240 panels (by card) / Class B, Max. 240 panels (by card and other accessories)
• PC Port: RS232/USB interface (by card)
• Protection: IP30
• Operating Environment:
  0°C~+40°C
  ≤95%, non-condensing
• Dimension: 406(W)x666(H)X130(D)mm2
