GST – Conventional Fire Alarm Control Panel

GST – Conventional Fire Alarm Control Panel

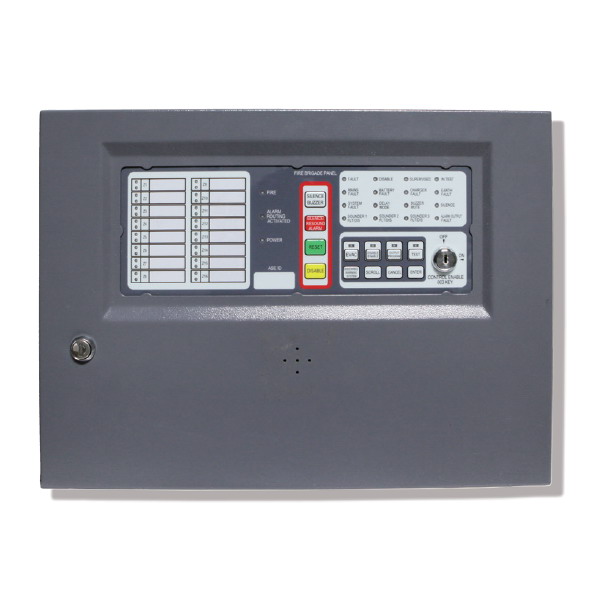

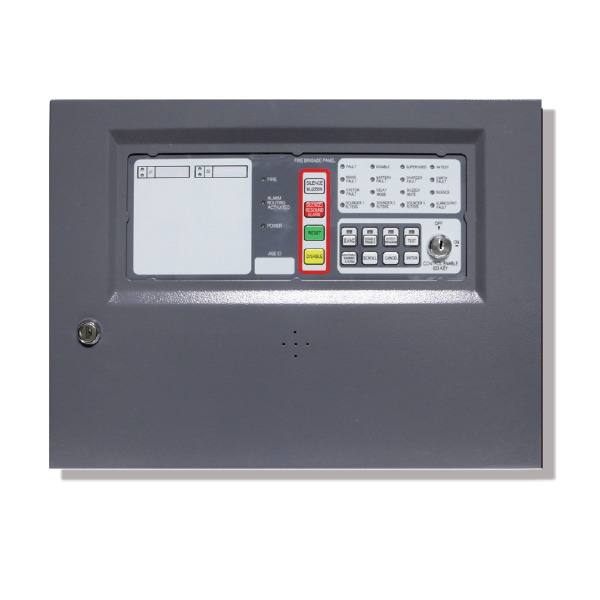

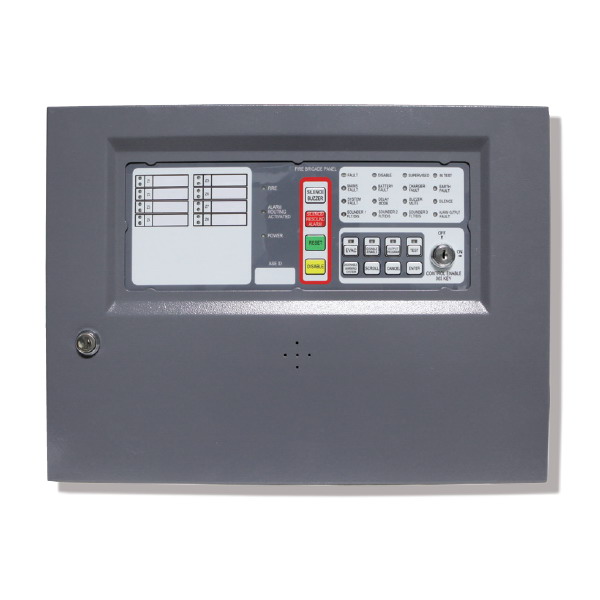

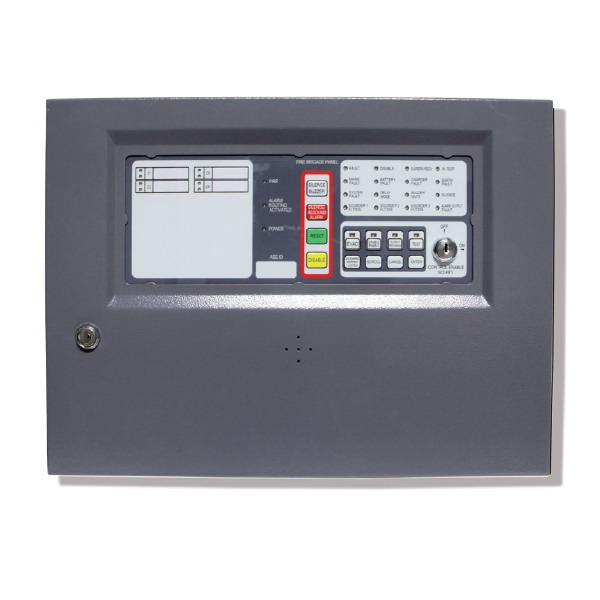

GST102A / GST104A / GST108A / GST116A

DESCRIPTION
GST102A / GST104A / GST108A / GST116A, Conventional Fire Alarm Control Panels are designed in compliance with EN 54-2 1997 + A1: 2006 & EN 54-4 1997+A1:2002+A2:2006 standard. It’s compatible with GST conventional detectors, manual call points and sounders. The panel is easy to install and operate. Control functions are enabled by a key switch. Programming functions are enabled by a key switch and an internal switch.

Feature

• 2/4/8/16 zone conventional fire alarm panels
• Each zone can have maximum 32 fire detectors
• Each zone can be programed work as fire alarm (default) or supervisory alarm mode
• Both End of Line Resister and Active End of Line can be used
• 1x Alarm output can be setup as 24V or N/O,N/C
• 3x sounder outputs, output 1 can be setup 24V or N/O N/C, output 2 and 3 only work as 24V output
• 1x Disable/supervisory relay output (N/O COM N/C)
• 1 x Fault output (N/O COM N/C)
• 1x Auxiliary power output:
• Easy operation to enable/disable zones, sounder outputs and alarm output
• Different Silence/Reset/Test modes can be selected to meet local requirement
• Remote controls available for silence evac and reset
• Three access levels settable via key control
• Repeater output available
• Optional relay output board
• LPCB Approved

Technical Specifications

• Standard: EN54-2, EN54-4
• Approvals: LPCB, CE
• Power Supply: 220V/230VAC+10%-15% 50/60Hz
• Operating Environment:
• Temperature: 0℃ ～+40℃
• Relative Humidity: 95%, non condensing
• Dimension: 330mm×98mm×320mm
