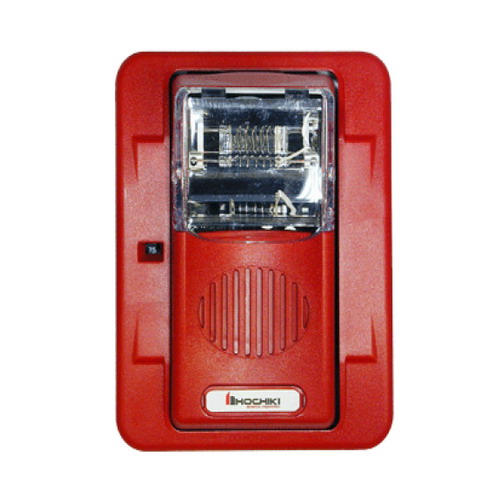

HE – Commander3 Series Selectable Candela Evacuation Signals
Applications
The Commander3 Series is a low profile strobe and horn/strobe combination that offers dependable audible and visual alarms and the lowest current available.
The HE3 Series 24VDC offers tamperproof field selectable candela options of 15, 30, 60, 75, and 110 candela. The 12VDC offers tamperproof field selectable candela options of 15, 30, 60, and 75 candela. The Commander3 Series horn offers a continuous or synchable temporal three in 2400Hz and mechanical tone, a chime and whoop tone. All tones are easy for the professional to change in the field by using switches.
The HE3 Series has a minimal operation current and has a minimum flash rate of 1Hz regardless of input voltage.
The Commander3 Series is shipped with the standard 4″ metal mounting plate which incorporates the popular Super-Slide® feature that allows the installer to easily test for supervision. The product also features a locking mechanism which secures the product to the bracket without any screws showing.
The Commander3 also features the Checkmate® – Instant Voltage Verification feature which allows the installer to check the voltage drop draw and match it to the blueprint.
The HE3 Series appliances are UL 464 and UL 1971, listed for use with fire protective systems and are warranted for three years from date of purchase.
Standard Features
• Nominal voltage 12VDC and 24VDC
• 24VDC units have field selectable candela options of 15, 30, 60, 75, and 110 candela
• 12VDC units have field selectable candela options of 15, 30, 60, and 75 candela
• HEH horn is available in 12VDC or 24VDC
• Super-Slide® Bracket – Ease of Supervision Testing
• Checkmate® – Instant Voltage Verification
• Unit Dimensions: 5″ high x 4.5″ wide x 2.5″ deep
• Synchronize strobe and/or horn with Hochiki Series Control Module (12VDC product must use the AVSM Module)
• Prewire entire system, then install signals
• Lower installation and operating costs
• Input terminals 12 to 18 AWG
• Switch selection for high or low dBA
• Switch for chime, whoop, mechanical and 2400Hz tone
• Tamperproof re-entrant grill
• Switch for continuous or temporal 3 (not available on whoop tone)
• Surface mount with the HSB (Hochiki ceiling surface mount box)
• Silence horn while strobes remain flashing
• Wide voltage range 8-17.5VDC (12VDC units) 16-33VDC or FWR (24VDC units)
• Faceplate available in red or off-white
