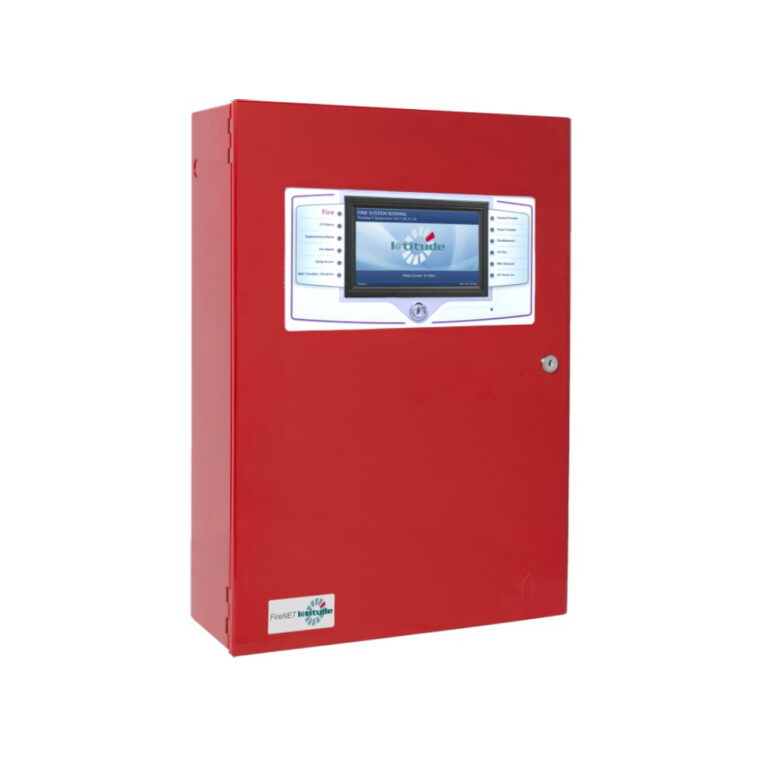

FireNET L@TITUDE – ANALOG ADDRESSABLE FIRE ALARM CONTROL PANEL
Description
The all new L@titude product range of fire alarm control equipment combines the very latest hardware and software to produce a control and indication system, which is powerful and sophisticated, yet simple to use and understand. The flexibility of the L@titude platform is such that it can be re-configured to realize many other control and indication applications, with direct integration into intelligent buildings.
Moving away from the simple, price driven competitive model used by most manufacturers today, the L@titude concept is designed to add value to System Designers, Integrators, Service Providers, and end users. Developed from the “ground up” and using some of the most advanced technology available, L@titude is designed as one of the most powerful, intelligent, and technically robust fire alarm products available.
Not only do the products and services offered under the L@titude brand provide solutions to the most technically challenging applications in life safety, L@titude will deliver added value, market advantage, and a competitive edge to your business.
Standard Features
• UL Listed (10th Edition), FM and CSFM Approved
• 2 to 8 loop or 2 to 16 loop versions
• 400mA loop current
• Programmable NACs; 4 Class B or 2 Class A, all with internal synchronization
• 5.25 A or 10.25 A power supply options
• 3 programmable inputs and 5 programmable relay outputs
• 7 inch, full-color resistive touch screen with intuitive user interface
• Up to 24 programmable soft “function keys”
• Up to 64 user login accounts
• Hard-wired fire and trouble routing inputs and outputs
• Modular and expandable electronics
• 400 subaddress points per loop (800 per loop module)
• Option to “invert” inputs and outputs
• 5,000 programmable cause and effects; over 50,000 inputs and outputs
• Can be networked with programmable functionality
• Programming via USB port to PC or memory stick
• Up to 127 sensors & modules, plus 127 digital analog sounder bases, for a total of 254 points possible per loop
Resources and Downloads
| FireNET Latitude – Analog Addressable Fire Alarm Control Panel | Download PDF |
| FireNET Latitude – All – Catalogue | Download PDF |
| FireNET Latitude – Installation Manual | Download PDF |
