Conventional Manual Call Point
Innovation Manual Call Point
Description

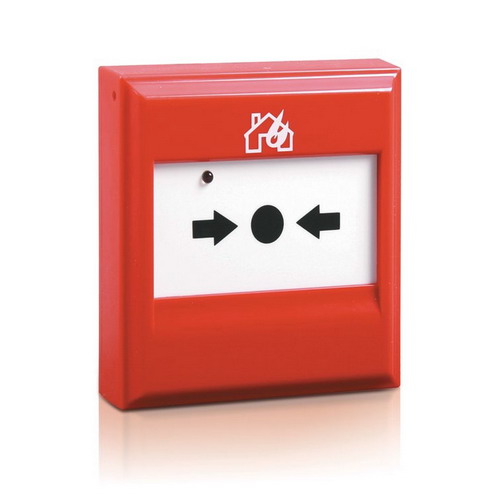

DC-9204E Innovation Manual Call Point (MCP) is non-addressable. It alarms by pressing the glass. It can be simply connected to compatible conventional fire alarm system from various manufacturers. This MCP is suitable for public places. When there is fire, pressing the glass on this MCP can send alarm signal to compatible conventional fire alarm control panel.
Features and Benefits
- Alarming by pressing, reset by a special key
- Plug-in structure
- Certified by LPCB for EN54-11
Technical Specifications
- Operating Voltage: 24VDC
- Operating Current:
Standby Current: 0
Alarm Current≤ 30mA - Operating Environment:
Temperature: -10℃～+55℃
Relative Humidity: 95%, non-condensing - Protection Rating: IP43
- Application: Indoor use
- Dimensions: 87.1mm×87.1mm×58.5mm (with back box)
Resources and Downloads
| DC-9204E – Conventional Manual Call Point | Download PDF |
| Operation and Installation Manual of GST102A / GST104A / GST108A / GST116A | Download PDF |
