S721-HA – FireNET Latitude UL Front Panel Board
LCD MAIN PROCESSOR BOARD (S721)
Description

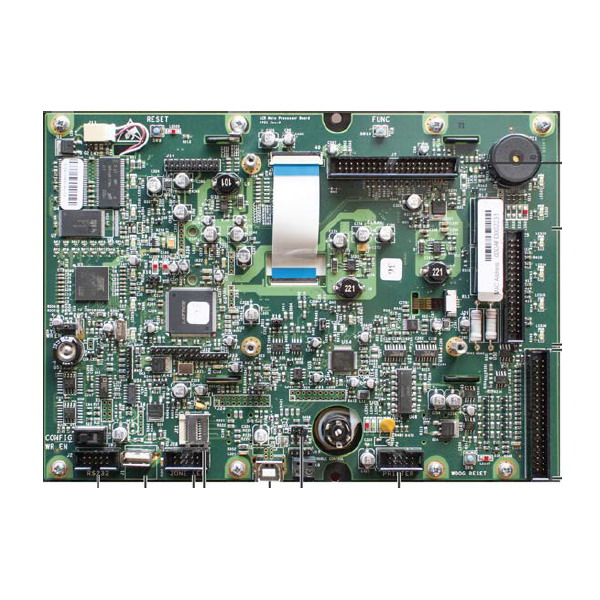

The LCD Main Processor Board provides the touch display, central processing, and memory for the Taktis Fire Alarm Control Panel. The LCD Main Processor Board mounts to the fascia of the Taktis Fire Alarm Control Panel and includes hardware features such as connectors, ports, switches, LED indicators, and the internal buzzer.
The LCD Main Processor Board provides the touch display, central processing, and memory for the Taktis Fire Alarm Control Panel. The LCD Main Processor Board mounts to the fascia of the Taktis Fire Alarm Control Panel and includes hardware features such as connectors, ports, switches, LED indicators, and the internal buzzer.
The LCD Main Processor Board, optional Zone LED module(s), and optional Taktis Printer are mounted on the fascia of the Taktis Fire Alarm Control Panel. The LCD Main Processor Board can operate a maximum of three Zone LED modules. One Zone LED module provides 48 LED indicators, two provides 96 LED indicators, and three Zone LED modules provide 144 LED indicators. Zone LED modules connect to the LCD Main Processor Board through a 10 conductor cable. Subsequent Zone LED modules are connected in sequence through additional 10 conductor cables.
