SH – Spring Vibration Isolator, Hanger Type
General Specification
Spring hangers with rubber element are required for suspended mechanical equipment to isolate vibration, absorb noise and accommodate expansion &
contraction without excessive stress or misalignment in support system.
Selection of Hanger shall be in accordance with weight and force distribution so as to result in reasonably uniform deflection.

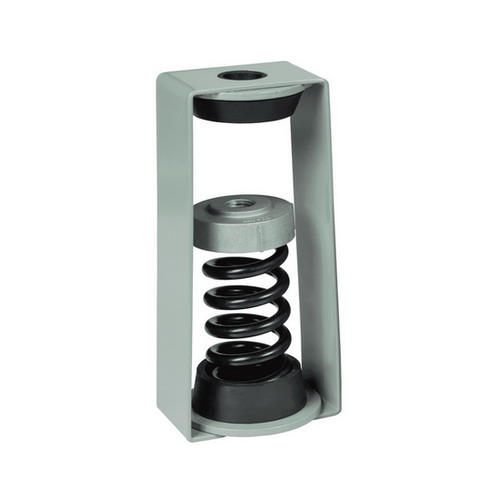

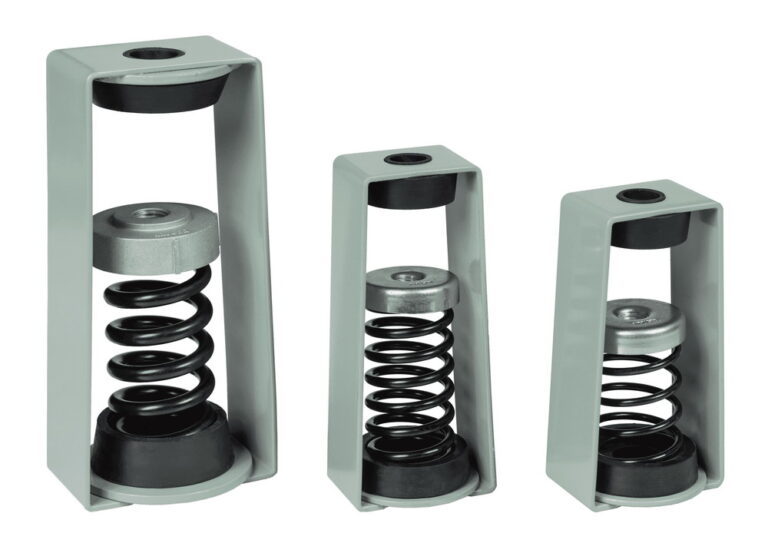

Kruger Spring Vibration Isolator – hanger type is available for 25mm, 50mm deflect with load range from 3 kg to 630 kg. Consist of a free-standing, laterally stable steel spring, load transfer mounting caps with neoprene base. And neoprene element in series assembled in a steel frame.
Application
Kruger Spring Vibration Isolator – hanger type is specially designed for used to isolate suspended source of both audible and inaudible noise and vibration.
They are typically used to reduce the transmission of noise and vibration from low speed mechanical equipments (fans) into a building structure.
Resources and Downloads
| – SH – Spring Vibration Isolator, Hanger Type | Download PDF |
