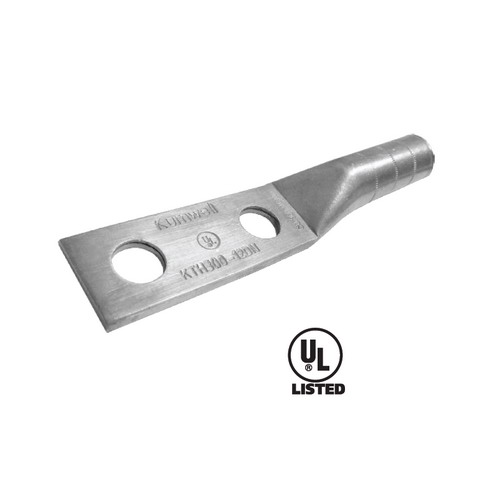

KTH-DN – 2-Hole Copper Lugs
Material
One piece seamless, high conductivity pure electrolytic copper and tin plated
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
UL 486
NEMA CC1
Certified
UL Listed
Application
Long Barrel lugs are usable with high voltage up to 35 kV. Suitable for grounding and lightning protection system
| Code No. | Copper Conductor (AWG/MCM) |
Copper Conductor (mm²) |

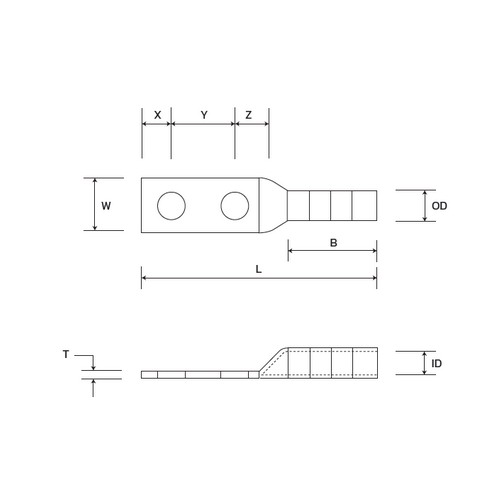

Stud Size | I.D (mm) | O.D (mm) | L (mm) | W (mm) | X (mm) | Y (mm) | Z (mm) | T (mm) | B (mm) |
| KTH 8‑6 DN | 8 | – | 1/4” | 4.6 | 7.1 | 54.9 | 10.9 | 6.4 | 16 | 9.4 | 2.5 | 18 |
| KTH 6‑6 DN | 6 | 16 | 1/4” | 5.6 | 7.9 | 65 | 12.2 | 6.4 | 16 | 9.4 | 2 | 27.2 |
| KTH 4‑6 DN | 4 | 25 | 1/4” | 7.1 | 9.7 | 65.5 | 14 | 6.4 | 16 | 9.4 | 2.3 | 27.2 |
| KTH 2‑8 DN | 2 | 35 | 5/16” | 7.9 | 10.7 | 76.7 | 16.8 | 9.1 | 19.1 | 11.2 | 2.5 | 29.5 |
| KTH 1/0‑12 DN | 1/0 | 50 | 1/2” | 10.2 | 13.2 | 124.5 | 19.3 | 16 | 44.5 | 16 | 3 | 36.6 |
| KTH 2/0‑12 DN | 2/0 | 70 | 1/2” | 11.4 | 14.7 | 126.5 | 21.6 | 16 | 44.5 | 16 | 3.3 | 38.1 |
| KTH 3/0‑12 DN | 3/0 | 95 | 1/2” | 12.9 | 16.3 | 126.5 | 24.4 | 16 | 44.5 | 16 | 3.3 | 38.1 |
| KTH 4/0‑12 DN | 4/0 | – | 1/2” | 14.7 | 18 | 130.3 | 26.9 | 16 | 44.5 | 16 | 3.6 | 39.6 |
| KTH 250‑12 DN | 250 | 120 | 1/2” | 16 | 19.6 | 132.8 | 29.7 | 16 | 44.5 | 16 | 3.6 | 40.9 |
| KTH 300‑12 DN | 300 | 150 | 1/2” | 16.5 | 20.6 | 147.3 | 30.2 | 16 | 44.5 | 16 | 4.8 | 52.1 |
| KTH 350‑12 DN | 350 | – | 1/2” | 17.8 | 22.4 | 147.3 | 32.5 | 16 | 44.5 | 19.1 | 4.8 | 52.1 |
| KTH 400‑12 DN | 400 | 185 | 1/2” | 19.3 | 24.1 | 153.7 | 35.8 | 16 | 44.5 | 19.1 | 4.8 | 55.1 |
| KTH 500‑12 DN | 500 | 240 | 1/2” | 21.3 | 26.9 | 155.2 | 38.9 | 16 | 44.5 | 19.1 | 5.6 | 58.4 |
| KTH 600‑12 DN | 600 | 300 | 1/2” | 23.4 | 30.2 | 172 | 42.9 | 16 | 44.5 | 19.1 | 7.1 | 67.8 |
| KTH 750‑12 DN | 750 | – | 1/2” | 26.2 | 33 | 179.1 | 44.5 | 16 | 44.5 | 19.1 | 7.1 | 73.2 |
| KTH 800‑12 DN | 800 | 400 | 1/2” | 26.7 | 34.3 | 179.1 | 48 | 16 | 44.5 | 19.1 | 7.4 | 73.2 |
| KTH 1000‑12 DN | 1000 | 500 | 1/2” | 29.7 | 38.1 | 184.4 | 54.9 | 16 | 44.5 | 19.1 | 8.6 | 76 |
