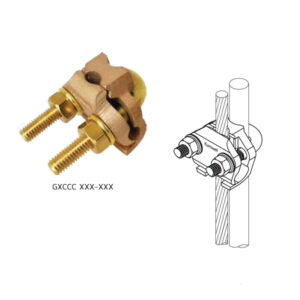

GXCCC – Rod to Cable Clamp
Material
Copper Alloy – BS EN 1982
Bolt, Nut – Stainless Steel or Copper Alloy
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application

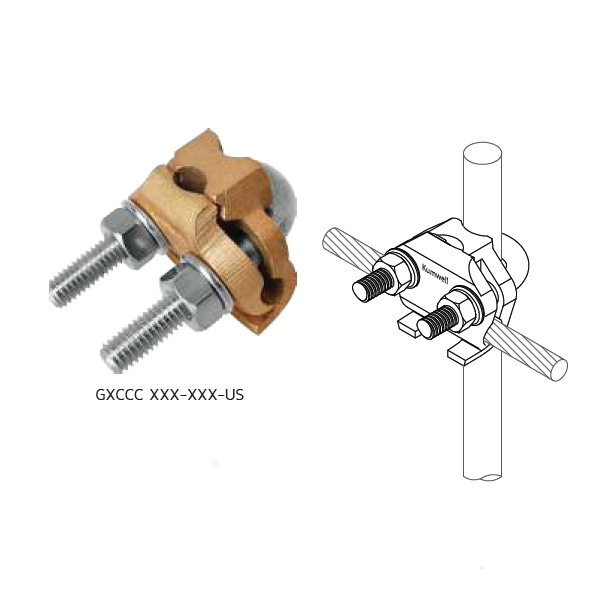

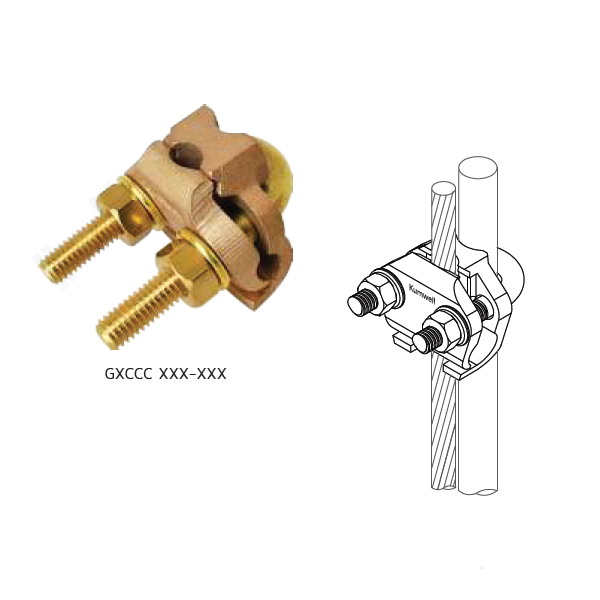

Clamp ground rod through or parallel to cable conductor
| Code No. | Rod Diameter | Cable Size | Weight | ||
| (inch) | (mm) | (mm²) | (kg) | ||
| GXCCC 142-95-US | GXCCC 142-95 | 5/8″ | 14.2 | 16-95 | 0.32 |
| GXCCC 142-185-US | GXCCC 142-185 | 5/8″ | 14.2 | 70-185 | 0.37 |
| GXCCC 142-300-US | GXCCC 142-300 | 5/8″ | 14.2 | 150-300 | 0.53 |
| GXCCC 172-70-US | GXCCC 172-70 | 3/4″ | 17.2 | 16-70 | 0.32 |
| GXCCC 172-150-US | GXCCC 172-150 | 3/4″ | 17.2 | 70-150 | 0.37 |
| GXCCC 172-300-US | GXCCC 172-300 | 3/4″ | 17.2 | 150-300 | 0.53 |
| GXCCC 231-70-US | GXCCC 231-70 | 1″ | 23.1 | 25-70 | 0.37 |
| GXCCC 231-150-US | GXCCC 231-150 | 1″ | 23.1 | 70-150 | 0.32 |
| GXCCC 231-300-US | GXCCC 231-300 | 1″ | 23.1 | 150-300 | 0.53 |
