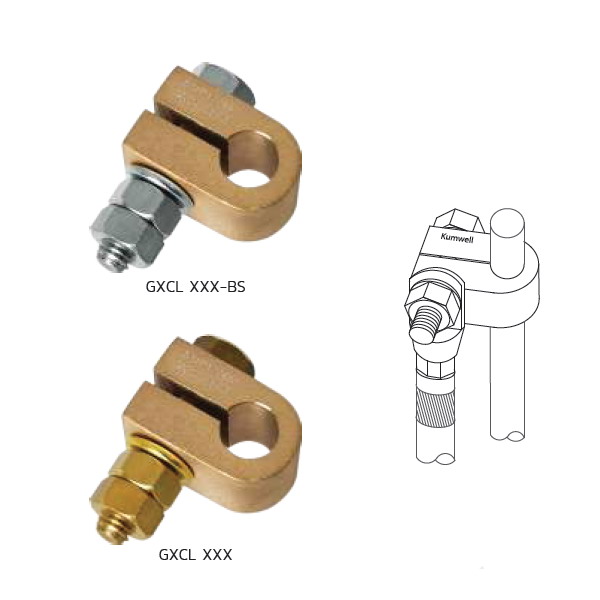

GXCL – Rod to Cable Lugs Clamp
Material
Copper Alloy – BS EN 1982
Bolt, Nut – Stainless Steel or Copper Alloy
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application
Clamp rod to cable lug conductor.
| Code No. | Rod Diameter | Weight | ||
| (inch) | (mm) | (kg) | ||
| GXCL 127-BS | GXCL 127 | 1/2″ | 12.7 | 0.25 |
| GXCL 142-BS | GXCL 142 | 5/8″ | 14.2 | 0.27 |
| GXCL 172-BS | GXCL 172 | 3/4″ | 17.2 | 0.32 |
| GXCL 231-BS | GXCL 231 | 1″ | 23.1 | 0.41 |
