Name: LCAS - Cable Support
SKU: LCAS
Price: 0.10 USD
Availability: InStock

LCAS – Cable Support

Tape Support – Please choose the options!

Model: LCAS
Brand: Kumwell
Origin: Thailand
Please click here to Download Catalogue

Code (Type)

Clear

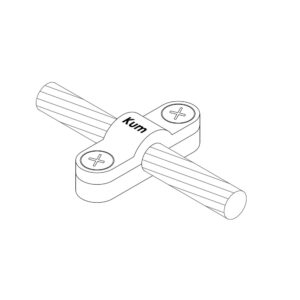

LCAS – Cable Support
Copper Alloy / Copper Alloy with Tin Plated / Aluminium Alloy

Material
Copper Alloy – BS EN 1982, Bolt – Stainless Steel
Copper Alloy – BS EN 1982, Bolt – Copper Alloy
Copper Alloy with Tin Plated, Bolt – Stainless Steel
Aluminium Alloy – BS 2898, (A) Bolt – Stainless Steel

Tested Standard
IEC 62561 Part 4
TIS 3024 Part 4

Application
Fix copper stranded or solid conductors.

Certified Mark
TIS

Code No.		Cable Size (mm²)	Material	Weight (Kg)
LCAS 25-35-85	LCAS 25-35	25-35	Copper Alloy	0.06
LCAS 50-70-85	LCAS 50-70	50-70	Copper Alloy	0.06
LCAS 95-120-85	LCAS 95-120	95-120	Copper Alloy	0.08
LCAS 150-185-85	LCAS 150-185	150-185	Copper Alloy	0.1
LCAS 240-300-BS	LCAS 240-300	240-300	Copper Alloy	0.17
LCAS 25-35T		25-35	Copper Alloy with Tin Plated	0.06
LCAS 50-70T		50-70	Copper Alloy with Tin Plated	0.06
LCAS 95-120T		95-120	Copper Alloy with Tin Plated	0.08
LCAS 25-35A		25-35	Aluminium Alloy	0.02
LCAS 50-70A		50-70	Aluminium Alloy	0.02
LCAS 95-120A		95-120	Aluminium Alloy	0.03
LCASD-8-10A		Aluminium Ø 8 ~ 10 mm	Aluminium Alloy	0.03

Resources and Downloads

– Kumwell Grounding & Lightning 2024	Download
– Kumwell Exothermic Welding 2024	Download

Weight

N/A

Code (Type)

LCAS 25-35 Copper for Cable 25-35 mm² with Copper Bolt, LCAS 50-70 Copper for Cable 50-70 mm² with Copper Bolt, LCAS 95-120 Copper for Cable 95-120 mm² with Copper Bolt, LCAS 150-185 Copper for Cable 150-185 mm² with Copper Bolt, LCAS 240-300 Copper for Cable 240-300 mm² with Copper Bolt, LCAS 25-35-BS Copper for Cable 25-35 mm² with SS Bolt, LCAS 50-70-BS Copper for Cable 50-70 mm² with SS Bolt, LCAS 95-120-BS Copper for Cable 95-120 mm² with SS Bolt, LCAS 150-185-BS Copper for Cable 150-185 mm² with SS Bolt, LCAS 240-300-BS Copper for Cable 240-300 mm² with SS Bolt, LCAS 25-35T Copper Tin plated for Cable 25-35 mm² with SS Bolt, LCAS 50-70T Copper Tin plated for Cable 50-70 mm² with SS Bolt, LCAS 95-120T Copper Tin plated for Cable 95-120 mm² with SS Bolt, LCAS 25-35A Aluminium for Cable 25-35 mm² with SS Bolt, LCAS 50-70A Aluminium for Cable 50-70 mm² with SS Bolt, LCAS 95-120A Aluminium for Cable 95-120 mm² with SS Bolt, LCASD-8-10A Aluminium for Alum. Ø 8-10 mm with SS Bolt
