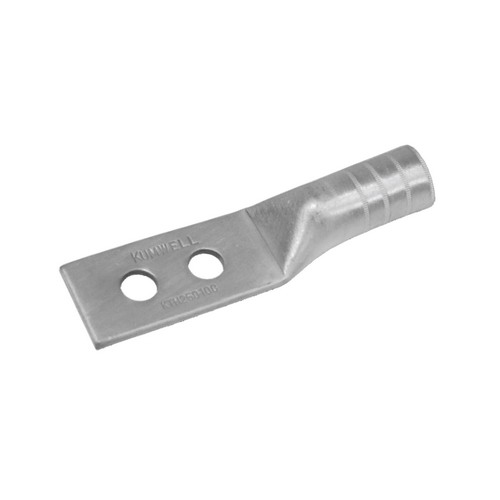

KTH-C – 2-Hole Copper Lugs
Material
One piece seamless, high conductivity pure electrolytic copper and tin plated
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application
Long Barrel lugs are usable with high voltage up to 35 kV. Suitable for grounding and lightning protection system

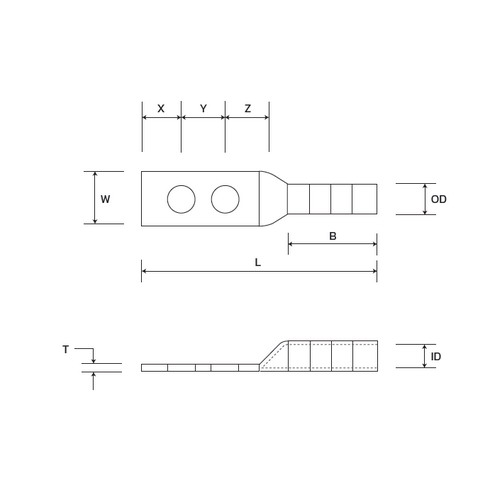

| Code No. | AWG/MCM | mm² | Stud Size | I.D (mm) | O.D (mm) | L (mm) | W (mm) | X (mm) | Y (mm) | Z (mm) | T (mm) | B (mm) |
| KTH 8–6 C | 8 | – | 1/4” | 4.6 | 7.1 | 54.9 | 10.9 | 6.4 | 20 | 9.4 | 2.5 | 14 |
| KTH 6–6 C | 6 | 16 | 1/4” | 5.6 | 8.6 | 69 | 14.9 | 9.9 | 20 | 9.9 | 2 | 17 |
| KTH 6–8 C | 6 | 16 | 5/16” | 5.6 | 8.6 | 69 | 14.9 | 9.9 | 20 | 9.9 | 2 | 17 |
| KTH 4–8 C | 4 | 25 | 5/16” | 7.1 | 9.7 | 69 | 14.9 | 9.9 | 20 | 9.9 | 2.3 | 22.9 |
| KTH 2–8 C | 2 | 35 | 5/16” | 7.9 | 10.7 | 76.7 | 16.8 | 9.1 | 20 | 11.2 | 2.5 | 28.7 |
