HPS – Manual Pull Station
Series HPS-SAH | HPS-SAK | HPS-DAH | HPS-DAK
Standard Features
- Metal Construction
- Enclosed switch with glass rod (included)
- 10 Amps @ 120 VAC
- Available in: Single Action and Dual Action
- UL, CSFM Listed
- Made in USA
Description

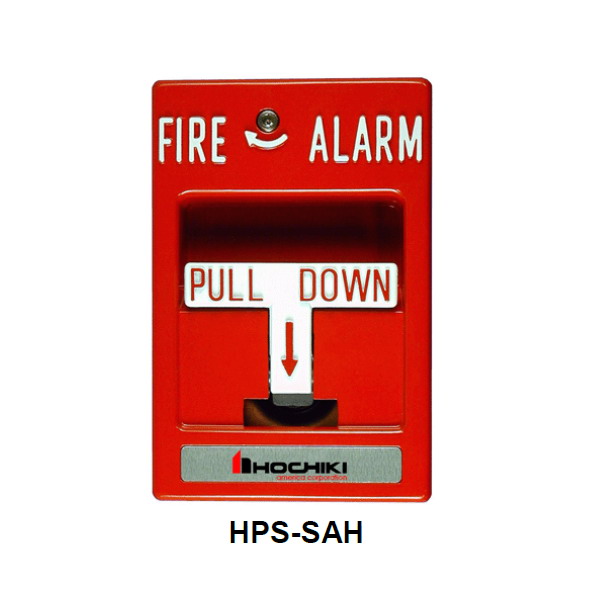

- Hochiki America’s Models HPS series pull stations:

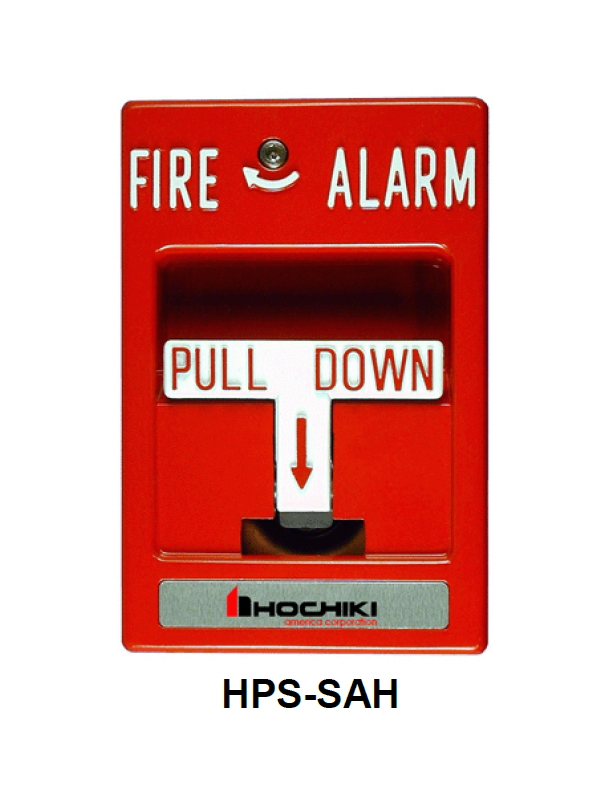

° HPS-SAH – single action with Hex lock

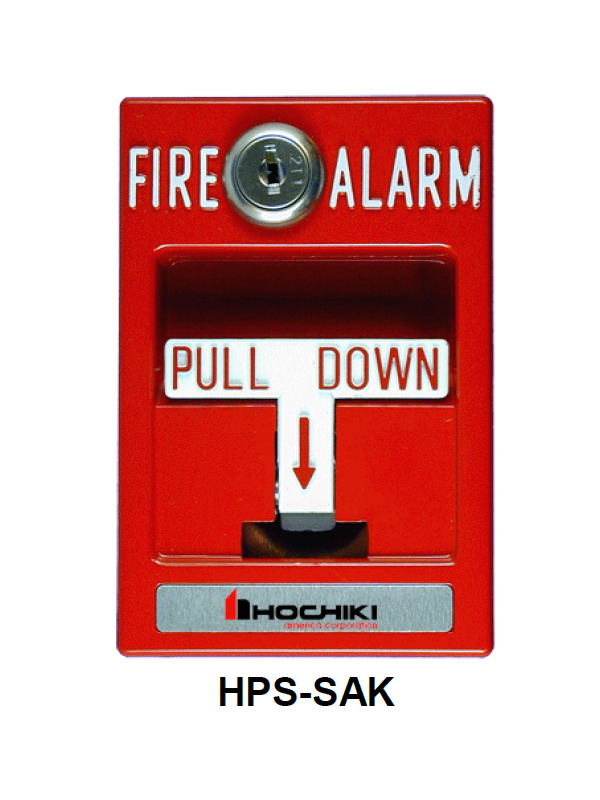

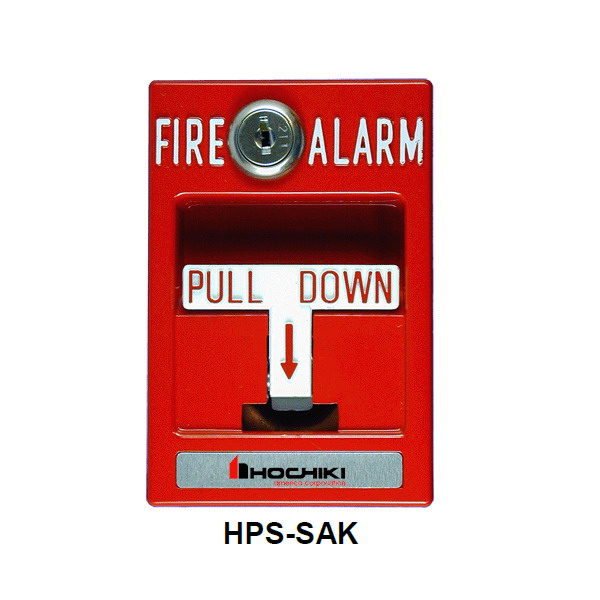

° HPS-SAK – single action with Key lock

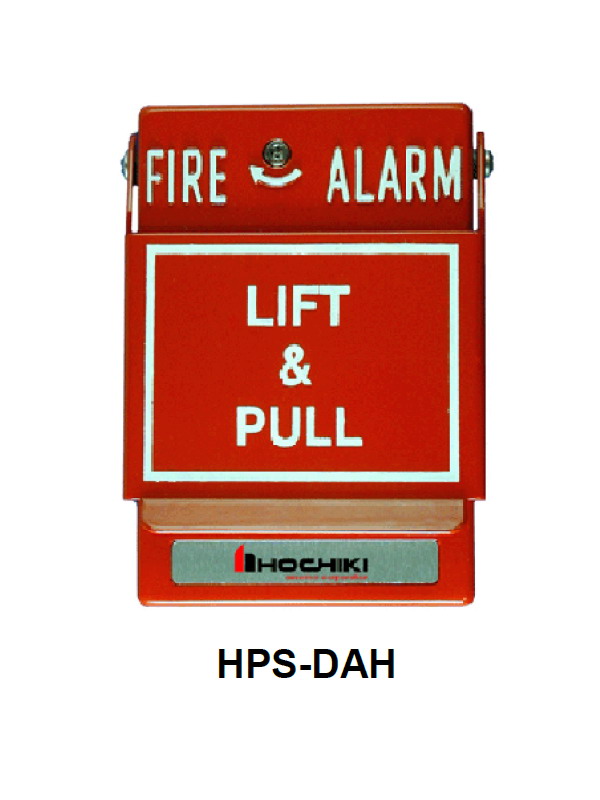

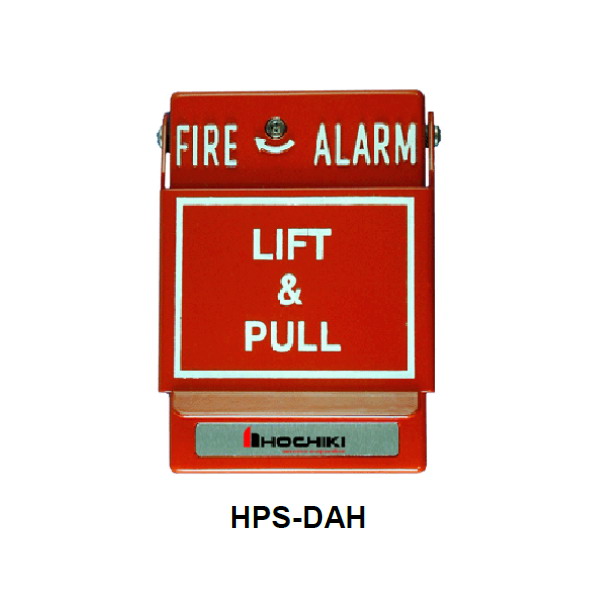

° HPS-DAH – dual action with Hex lock

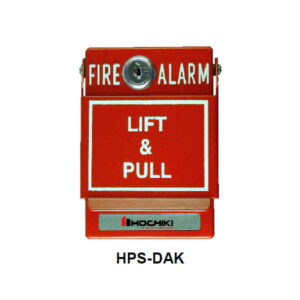

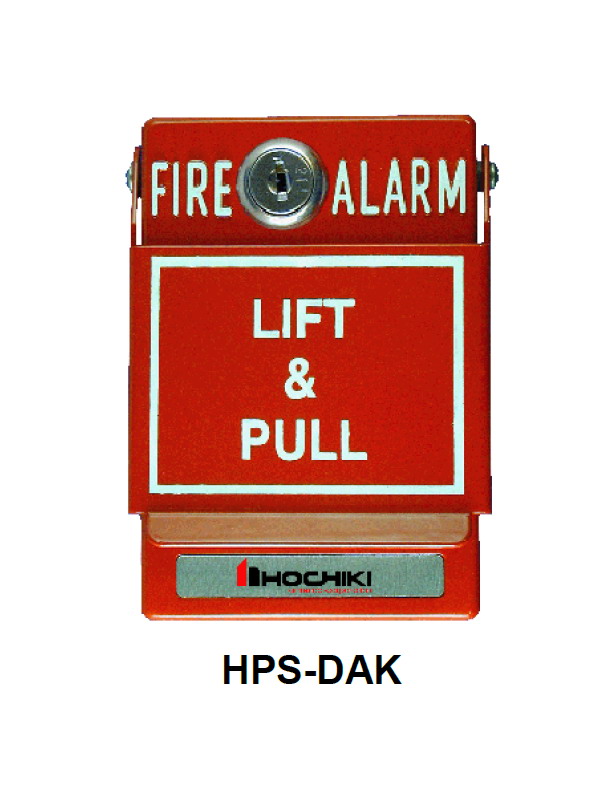

° HPS-DAK – dual action with Key lock
Each model is constructed of a solid die cast housing and comes in glossy red. The back switch plate is plated steel. The electrical switch is rated for 10 Amps @ 120 VDC normally open contact rating. All models are connected via terminal block connections.
Specification
| Model | SAH, SAK, DAH, DAK, | EXP./WTP. PRF |
| Contact | SPST Form “A” | DPDT Form “C” |
| Terminal Block | A | A & B |
| Terminal Connecting | 2 & 3 | 1, 2, 3, 5, 6, 7 |
| Terminal Connection LED | 1 (+) & 4 (-) | 4 (+) & 8(-) |
| Terminal Connection Switch | 1 & 4 | 4 & 8 |
| Terminal Connection Phone Jack | 1 & 4 | 4 & 8 |
| Contact Rating | 10A @ 120 VAC | 10A @ 120 VAC |
| Operating Temperature | -30°F (-35°C) ~ 150°F (66°C) | -30°F (-35°C) ~ 150°F (66°C) |
| Dimensions | HPS-SAH_SAK | 3.2”W x 4.75”H x .875”D |
| HPS-DAH | 3.325”W x 4.75”H x 1.625”D | |
| HPS-DAK | 3.325”W x 4.75”H x 1.625”D |
