Ground Bar Pit
Material: Copper – BS EN 13601
Material Option: Copper with Tin
Tested Standard: IEC 62561 Part 1; TIS 3024 Part 1

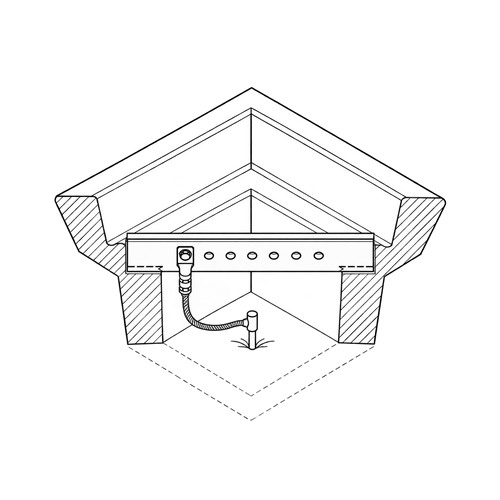

Application: Suitable for testing point of grounding system that separates connections with another inspection pit.
| Code No. | No. of Terminal | Size (mm) | Weight (kg) | Use for |
| GXGBP 2505 | 5 | 250 × 25 × 6 | 0.30 | GXCIP |
| GXGBP 2507 | 7 | 250 × 25 × 6 | 0.29 | GXCIP |
| GXGBP 2505T | 5 | 250 × 25 × 6 | 0.30 | GXCIP |
| GXGBP 2507T | 7 | 250 × 25 × 6 | 0.29 | GXCIP |

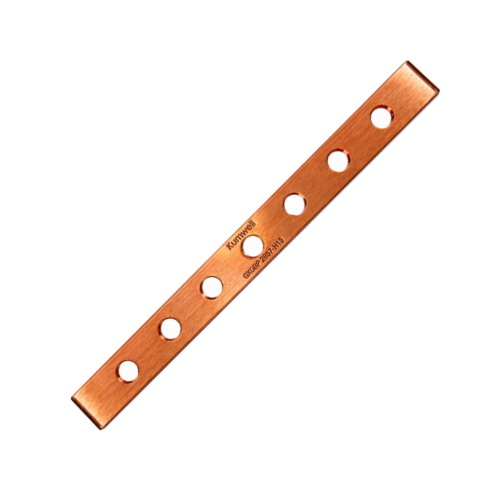

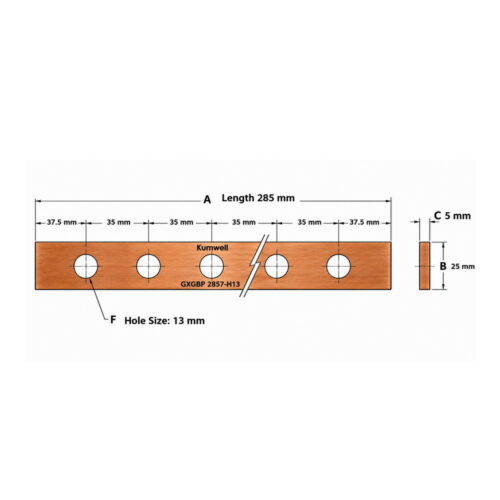

| GXGBP 2857-H13 | 7 | 285 x 25 x 5 | 0.30 | GXFIP |
