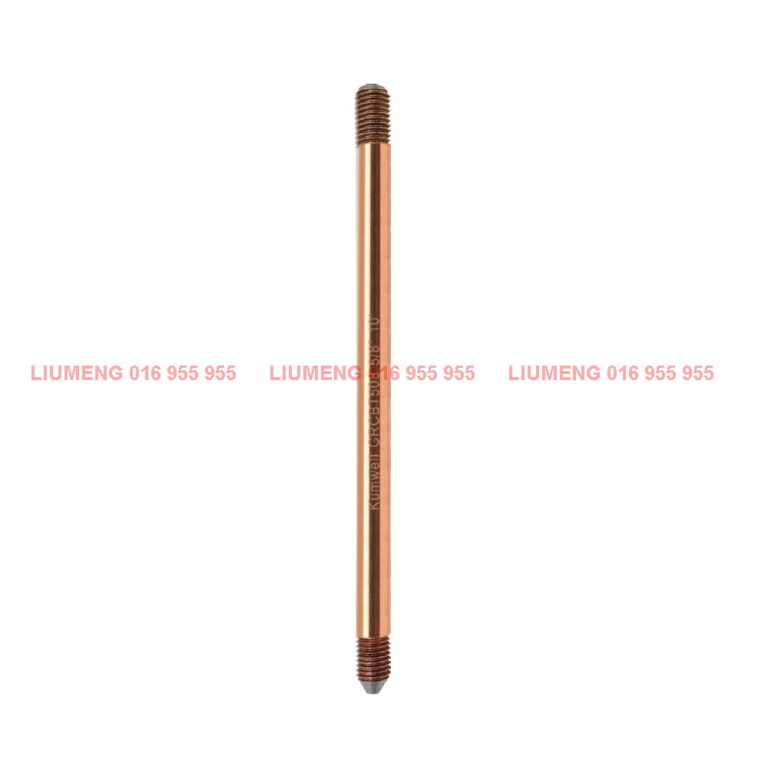

GRCBT50 – Copper-Bonded Ground Rod Threaded Type
Copper-Bonded Ground Rod is made by molecularly bonding pure electrolytic copper onto a low carbon, high tensile steel core. The material made of 99.9% pure electrolytic copper with high tensile steel.
Material
High tensile strength steel
Copper purity > 99.9%
Application
Suitable for disperse current into the earth to extend the length of ground rod by coupling.
| Code No. |
Nominal Diameter Dia. (inch) |
Actual Diameter Dia. (mm) |
Threaded Size (inch) |
Length (ft / m) | Weight (kg) |
| GRCBT50-588 | 5/8″ | 14.2 | 5/8″ | 8 / 2.44 | 3.08 |
| GRCBT50-5810 | 5/8″ | 14.2 | 5/8″ | 10 / 3.05 | 3.8 |
| GRCBT50-348 | 3/4″ | 17.2 | 3/4″ | 8 / 2.44 | 4.46 |
| GRCBT50-3410 | 3/4″ | 17.2 | 3/4″ | 10 / 3.05 | 5.58 |
