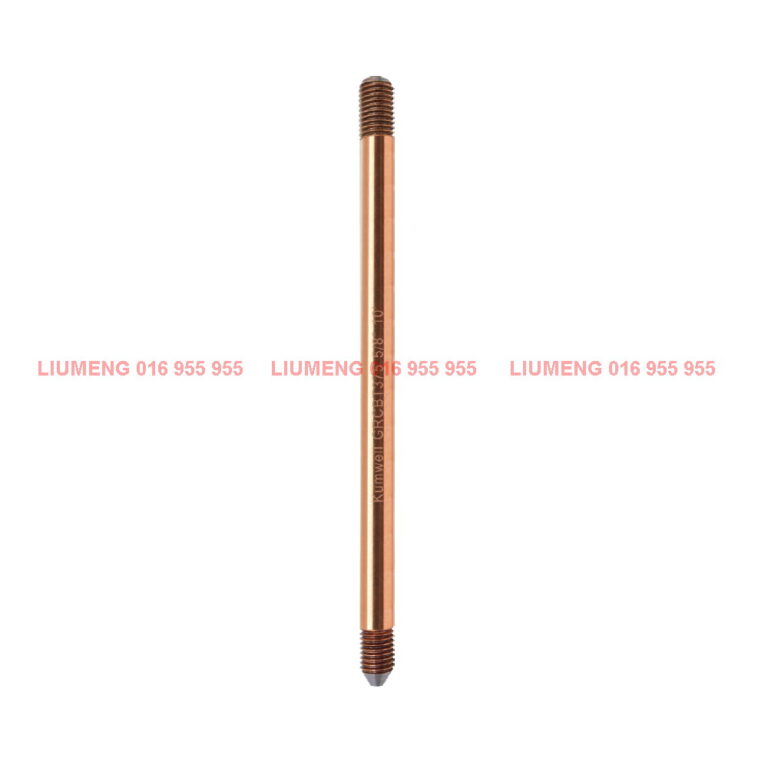

GRCBT375 – Copper-Bonded Ground Rod (375 micron) Threaded Type
Copper-Bonded Ground Rod is made by molecularly bonding pure electrolytic copper onto a low carbon, high tensile steel core with exceeding 0.375 mm (375 micron) thick. The material made of 99.9% pure electrolytic copper with high tensile steel. To ensure in safety and quality, it meets UL and IEC standard for grounding and bonding equipments.
Material
High tensile strength steel
Copper purity > 99.9%
Tested Standard
IEC 62561 Part 2
UL 467
Application
Suitable for disperse current into the earth.
| Code No. | Nominal Diameter | Actual Diameter | Type | Length (ft / m) | Weight |
| Dia. (inch) | Dia. (mm) | Threaded Size | (kg) | ||
| GRCBT375 124 | 1/2″ | 12.7 | 1/2″ | 4 / 1.22 | 1.12 |
| GRCBT375 126 | 1/2″ | 12.7 | 1/2″ | 6 / 1.83 | 1.68 |
| GRCBT375 128 | 1/2″ | 12.7 | 1/2″ | 8 / 2.44 | 2.59 |
| GRCBT375 1210 | 1/2″ | 12.7 | 1/2″ | 10 / 3.05 | 3.24 |
| GRCBT375 584 | 5/8″ | 14.2 | 5/8″ | 4 / 1.22 | 1.60 |
| GRCBT375 586 | 5/8″ | 14.2 | 5/8″ | 6 / 1.83 | 2.24 |
| GRCBT375 588 | 5/8″ | 14.2 | 5/8″ | 8 / 2.44 | 3.17 |
| GRCBT375 5810 | 5/8″ | 14.2 | 5/8″ | 10 / 3.05 | 3.97 |
| GRCBT375 344 | 3/4″ | 17.2 | 3/4″ | 4 / 1.22 | 2.33 |
| GRCBT375 346 | 3/4″ | 17.2 | 3/4″ | 6 / 1.83 | 3.49 |
| GRCBT375 348 | 3/4″ | 17.2 | 3/4″ | 8 / 2.44 | 4.72 |
| GRCBT375 3410 | 3/4″ | 17.2 | 3/4″ | 10 / 3.05 | 5.80 |
| GRCBT375 14 | 1″ | 23.1 | 1″ | 4 / 1.22 | 4.19 |
| GRCBT375 16 | 1″ | 23.1 | 1″ | 6 / 1.83 | 6.29 |
| GRCBT375 18 | 1″ | 23.1 | 1″ | 8 / 2.44 | 8.35 |
| GRCBT375 110 | 1″ | 23.1 | 1″ | 10 / 3.05 | 10.47 |
