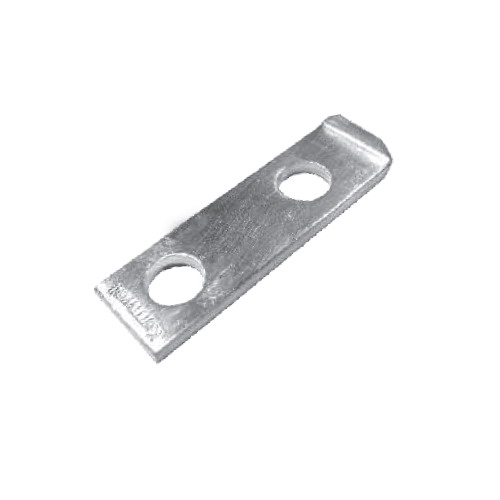

CL-2 – Copper Lug 2 holes for Exothermic Welding
Material
Tin Plated Copper – BS EN 13601
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application
Connect copper stranded or solid conductors by exothermic welding

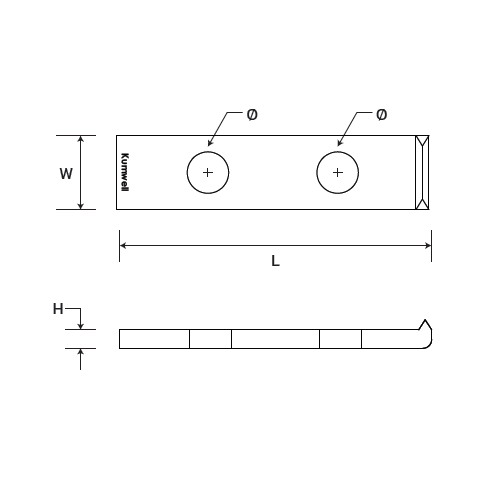

| Code No. | Cable Size (mm²) | W (mm) | L (mm) | H (mm) | Ø (mm) |
| CL‑2‑25 | 25 | 25.4 | 85 | 3.2 | 14.2 |
| CL‑2‑35 | 35 | 25.4 | 85 | 3.2 | 14.2 |
| CL‑2‑50 | 50 | 25.4 | 85 | 3.2 | 14.2 |
| CL‑2‑70 | 70 | 25.4 | 85 | 3.2 | 14.2 |
| CL‑2‑95 | 95 | 25.4 | 85 | 4.8 | 14.2 |
| CL‑2‑120 | 120 | 25.4 | 85 | 4.8 | 14.2 |
| CL‑2‑150 | 150 | 25.4 | 85 | 6.3 | 14.2 |
| CL‑2‑185 | 185 | 25.4 | 85 | 6.3 | 14.2 |
| CL‑2‑240 | 240 | 38.2 | 85 | 6.3 | 14.2 |
