KOL – Copper Lugs

KOL – Copper Lugs – Please choose the options!

Model: KOL
Brand: Kumwell
Please click here to Download Catalogue PDF

Model / Code

Clear

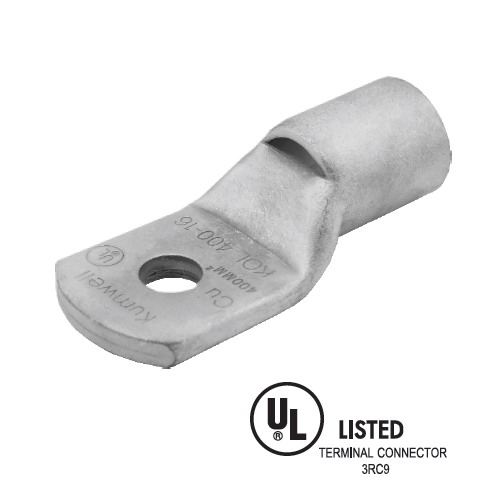

KOL – Copper Lugs

Material
One-piece seamless, high conductivity pure electrolytic copper and tin plated.

Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
UL 486
NEMA CC1

Certified: UL Listed

Application
Long Barrel lugs are usable with high voltage up to 35 kV. Suitable for grounding and lightning protection system.

Code No.	Cable (mm²)	Hole (mm)	I.D (mm)	O.D (mm)	L (mm)	W (mm)	T (mm)	Weight (kg)
KOL 10–6	10	6.4	4.5	6.2	25	10	1.5	0.002
KOL 10–8	10	8.4	4.5	6.2	25	12.6	1.5	0.002
KOL 16–6	16	6.4	5.4	7.1	30	10	1.5	0.01
KOL 16–8	16	8.4	5.4	7.1	30	12.6	1.5	0.01
KOL 25–6	25	6.4	6.8	8.8	30	12.6	1.5	0.01
KOL 25–8	25	8.4	6.8	8.8	30	12.6	1.5	0.01
KOL 25–10	25	10.5	6.8	8.8	31	15	1.5	0.01
KOL 35–6	35	6.4	8.2	10.6	35	15	2.5	0.01
KOL 35–8	35	8.4	8.2	10.6	35	15	2.5	0.01
KOL 35–10	35	10.5	8.2	10.6	35	15	2.5	0.01
KOL 35–12	35	13	8.2	10.6	35	15	2.5	0.01
KOL 50–8	50	8.4	9.5	12.4	43	18	3	0.02
KOL 50–10	50	10.5	9.5	12.4	43	18	3	0.02
KOL 50–12	50	13	9.5	12.4	43	19	3	0.02
KOL 70–8	70	8.4	11.2	14.7	50	21	3.4	0.03
KOL 70–10	70	10.5	11.2	14.7	50	21	3.4	0.03
KOL 70–12	70	13	11.2	14.7	50	21	3.4	0.03
KOL 95–8	95	8.4	13.5	17.4	55	25.5	3.4	0.04
KOL 95–10	95	10.5	13.5	17.4	55	25.5	3.4	0.04
KOL 95–12	95	13	13.5	17.4	55	25.5	3.4	0.04
KOL 120–10	120	10.5	15	19.4	60	28	4	0.06
KOL 120–12	120	13	15	19.4	60	28	4	0.06
KOL 120–14	120	15	15	19.4	60	28	4	0.06
KOL 120–16	120	17	15	19.4	60	28	4	0.06
KOL 150–10	150	10.5	16.5	21.2	69	30.5	4	0.08
KOL 150–12	150	13	16.5	21.2	69	30.5	4	0.08
KOL 150–14	150	15	16.5	21.2	69	30.5	4	0.08
KOL 150–16	150	17	16.5	21.2	69	30.5	4	0.08
KOL 185–12	185	13	18.5	23.5	78	34	4.5	0.1
KOL 185–14	185	15	18.5	23.5	78	34	4.5	0.1
KOL 185–16	185	17	18.5	23.5	78	34	4.5	0.09
KOL 240–12	240	13	21	26.5	92	38.5	5.5	0.16
KOL 240–14	240	15	21	26.5	92	38.5	5.5	0.16
KOL 240–16	240	17	21	26.5	92	38.5	5.5	0.17
KOL 240–18	240	19	21	26.5	92	38.5	5.5	0.17
KOL 300–12	300	13	23.5	30	101	43.5	6.5	0.23
KOL 300–14	300	15	23.5	30	101	43.5	6.5	0.23
KOL 300–16	300	17	23.5	30	101	43.5	6.5	0.23
KOL 300–18	300	19	23.5	30	101	43.5	6.5	0.23
KOL 400–14	400	15	28.5	36.5	114	53	7.5	0.4
KOL 400–16	400	17	28.5	36.5	114	53	7.5	0.4
KOL 400–18	400	19	28.5	36.5	114	53	7.5	0.39
KOL 400–20	400	21	28.5	36.5	114	53	7.5	0.39
KOL 500–14	500	15	29.7	38.1	124	56	8.5	0.46
