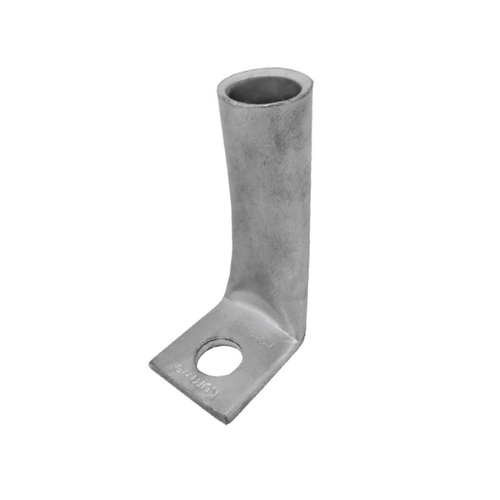

KOHL – Copper Lugs One-Hole Long Barrel 90° Pad
Material
One piece seamless, high conductivity pure electrolytic copper and tin plated
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
UL 486
NEMA CC1
Application
Long Barrel lugs are usable with high voltage up to 35 kV. Suitable for grounding and lightning protection system

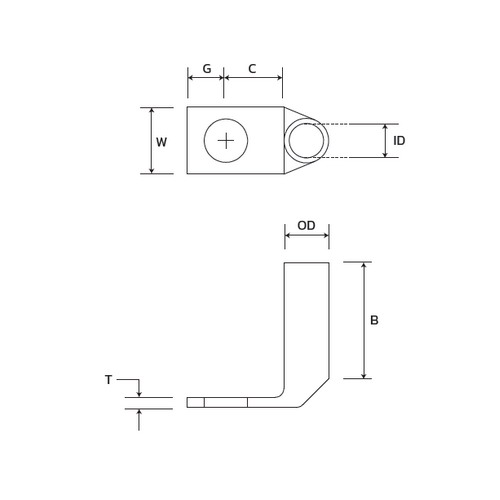

| Code No. | AWG/MCM | mm² | Stud Size | I.D (mm) | O.D (mm) | W (mm) | G (mm) | C (mm) | T (mm) | B (mm) |
| KOHL 8‑6 | 8 | – | 1/4″ | 4.6 | 7.1 | 10.9 | 6.4 | 9.4 | 2.5 | 18 |
| KOHL 6‑6 | 6 | 16 | 1/4″ | 5.6 | 7.9 | 12.2 | 6.4 | 9.4 | 2 | 27.2 |
| KOHL 4‑6 | 4 | 25 | 1/4″ | 7.1 | 9.7 | 14 | 6.4 | 9.4 | 2.3 | 27.2 |
| KOHL 2‑8 | 2 | 35 | 5/16″ | 7.9 | 10.7 | 16.8 | 8.1 | 11.2 | 2.5 | 29.5 |
| KOHL 1/0‑12 | 1/0 | 50 | 1/2″ | 10.2 | 13.2 | 19.3 | 11.9 | 16 | 3 | 36.6 |
| KOHL 2/0‑12 | 2/0 | 70 | 1/2″ | 11.4 | 14.7 | 21.6 | 12.7 | 16 | 3.3 | 38.1 |
| KOHL 3/0‑12 | 3/0 | 95 | 1/2″ | 13 | 16.3 | 24.4 | 12.7 | 16 | 3.3 | 38.1 |
| KOHL 4/0‑12 | 4/0 | – | 1/2″ | 14.7 | 18 | 26.9 | 12.7 | 16 | 3.6 | 39.6 |
| KOHL 250‑12 | 250 | 120 | 1/2″ | 16 | 19.6 | 29.7 | 16 | 16 | 3.6 | 40.9 |
| KOHL 300‑12 | 300 | 150 | 1/2″ | 16.5 | 20.6 | 30.2 | 16 | 16 | 4.8 | 52.1 |
| KOHL 350‑12 | 350 | – | 1/2″ | 17.8 | 22.4 | 32.5 | 16 | 16 | 4.8 | 52.1 |
| KOHL 400‑16 | 400 | 185 | 5/8″ | 19.3 | 24.1 | 35.8 | 16.8 | 17.5 | 4.8 | 55.1 |
| KOHL 500‑16 | 500 | 240 | 5/8″ | 21.3 | 26.9 | 38.9 | 16.8 | 21.3 | 5.6 | 58.4 |
| KOHL 600‑16 | 600 | 300 | 5/8″ | 23.4 | 30.2 | 42.9 | 22.4 | 22.4 | 7.1 | 67.8 |
| KOHL 750‑16 | 750 | – | 5/8″ | 26.2 | 33 | 44.5 | 22.4 | 26.9 | 7.1 | 73.2 |
| KOHL 800‑16 | 800 | 400 | 5/8″ | 26.7 | 34.3 | 48 | 22.4 | 26.9 | 7.4 | 73.2 |
| KOHL 1000‑16 | 1000 | 500 | 5/8″ | 29.7 | 38.1 | 54.9 | 24.6 | 30.2 | 8.6 | 76 |
