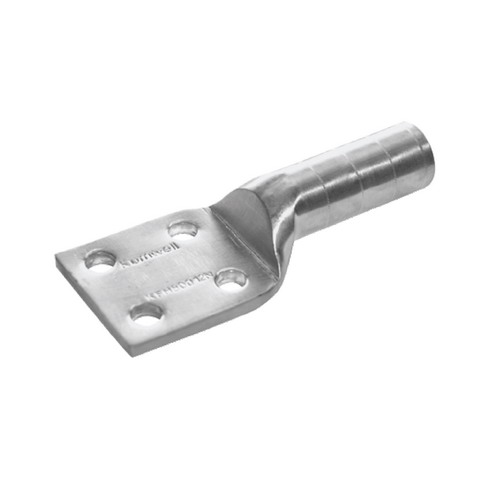

KFH – 4-Hole Copper Lugs
Material
One piece seamless, high conductivity pure electrolytic copper and tin plated.
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
UL 486
NEMA CC1
Application
Long Barrel lugs are usable with high voltage up to 35 kV. Suitable for grounding and lightning protection system.

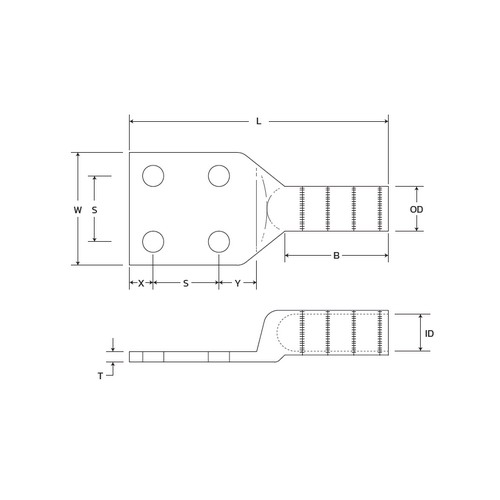

| Code No. | MCM | mm² | Stud Size | I.D (mm) | O.D (mm) | L (mm) | W (mm) | X (mm) | S (mm) | Y (mm) | T (mm) | B (mm) | Weight (kg) |
| KFH 250‑12N | 250 | 120 | 1/2″ | 16 | 19.6 | 132.9 | 76.2 | 16 | 44.5 | 19.1 | 3.6 | 40.9 | 0.26 |
| KFH 300‑12N | 300 | 150 | 1/2″ | 16.5 | 20.6 | 147.3 | 76.2 | 16 | 44.5 | 19.1 | 4.8 | 52.1 | 0.37 |
| KFH 350‑12N | 350 | – | 1/2″ | 17.8 | 22.4 | 147.3 | 76.2 | 16 | 44.5 | 19.1 | 4.8 | 52.1 | 0.38 |
| KFH 400‑12N | 400 | 185 | 1/2″ | 19.3 | 24.1 | 153.7 | 76.2 | 16 | 44.5 | 19.1 | 4.8 | 55.1 | 0.39 |
| KFH 500‑12N | 500 | 240 | 1/2″ | 21.3 | 26.9 | 155.2 | 76.2 | 16 | 44.5 | 19.1 | 5.6 | 58.4 | 0.48 |
| KFH 600‑12N | 600 | 300 | 1/2″ | 23.4 | 30.2 | 172 | 76.2 | 16 | 44.5 | 19.1 | 7.1 | 67.8 | 0.69 |
| KFH 750‑12N | 750 | – | 1/2″ | 26.2 | 33 | 179.1 | 76.2 | 16 | 44.5 | 19.1 | 7.1 | 73.2 | 0.71 |
| KFH 800‑12N | 800 | 400 | 1/2″ | 26.7 | 34.3 | 179.1 | 76.2 | 16 | 44.5 | 19.1 | 7.4 | 73.2 | 0.83 |
| KFH 1000‑12N | 1000 | 500 | 1/2″ | 29.7 | 38.1 | 184.2 | 76.2 | 16 | 44.5 | 19.1 | 8.6 | 75.7 | 0.92 |
| KFH 1250‑12N | 1250 | 630 | 1/2″ | 33 | 42.7 | 190.5 | 76.2 | 16 | 44.5 | 19.1 | 10.2 | 81 | 1.22 |
| KFH 1500‑12N | 1500 | – | 1/2″ | 36.6 | 47 | 190.5 | 76.2 | 16 | 44.5 | 19.1 | 10.2 | 81 | 1.3 |
| KFH 2000‑12N | 2000 | 1000 | 1/2″ | 42.4 | 54.4 | 207.3 | 77.7 | 16 | 44.5 | 19.1 | 11.7 | 87.4 | 1.66 |
