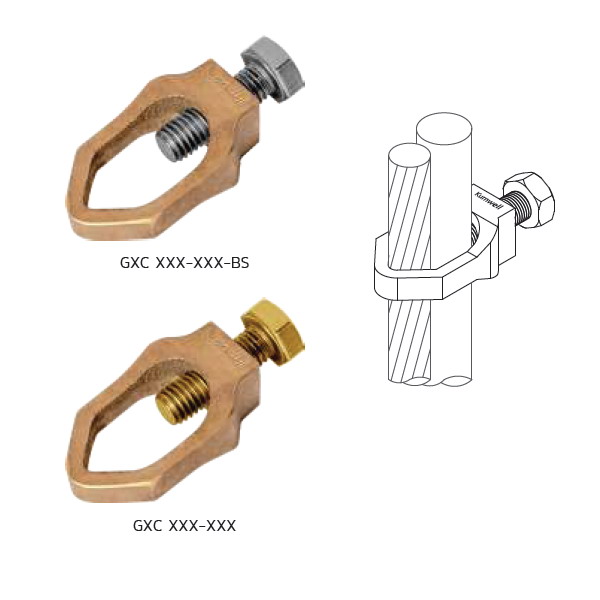

GXC – Rod to Cable Clamp
Material
Copper Alloy – BS EN 1982
Bolt – Stainless Steel or Copper Alloy
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application
Clamp ground rod with copper cable conductor.
| Code No. | Rod Diameter | Cable Size | Weight | ||
| (inch) | (mm) | (mm²) | (kg) | ||
| GXC 95-35-BS | GXC 95-35 | 3/8″ | 9.5 | 25-35 | 0.05 |
| GXC 127-50-BS | GXC 127-50 | 1/2″ | 12.7 | 16-50 | 0.08 |
| GXC 142-70-BS | GXC 142-70 | 5/8″ | 14.2 | 10-70 | 0.04 |
| GXC 172-95-BS | GXC 172-95 | 3/4″ | 17.2 | 35-95 | 0.12 |
| GXC 231-120-BS | GXC 231-120 | 1″ | 23.1 | 50-120 | 0.14 |
