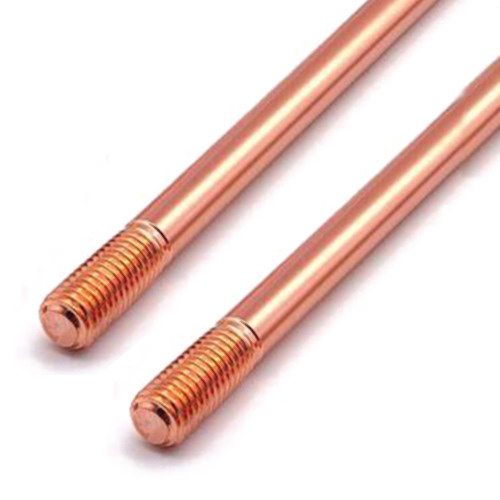

Copper Bonded Ground Rod 254µ
Copper-Bonded Ground Rod is made by molecularly bonding pure electrolytic copper onto a low carbon, high tensile steel core with exceeding 0.254 mm (254 micron) thick. The material made of 99.9% pure electrolytic copper with high tensile steel. To ensure in safety and quality, it meets UL and IEC standard for grounding and bonding equipments.
Standard Compliance
UL 467 & IEC Standard
Material
High tensile strength steel
Copper purity > 99.9%
Application
Suitable for disperse current into the earth.
| Code No. |
Nominal Diameter Dia. (inch) |
Actual Diameter Dia. (mm) |
Type |
Length (ft / m) | Weight (kg) |
| ATZ-GR 584 | 5/8″ | 14.2 | Threaded | 4 / 1.22 | 1.54 |
| ATZ-GR 586 | 5/8″ | 14.2 | Threaded | 6 / 1.83 | 2.31 |
| ATZ-GR 588 | 5/8″ | 14.2 | Threaded | 8 / 2.44 | 3.08 |
| ATZ-GR 5810 | 5/8″ | 14.2 | Threaded | 10 / 3.05 | 3.80 |
| ATZ-GR 344 | 3/4″ | 17.2 | Threaded | 4 / 1.22 | 2.23 |
| ATZ-GR 346 | 3/4″ | 17.2 | Threaded | 6 / 1.83 | 3.35 |
| ATZ-GR 348 | 3/4″ | 17.2 | Threaded | 8 / 2.44 | 4.46 |
| ATZ-GR 3410 | 3/4″ | 17.2 | Threaded | 10 / 3.05 | 5.58 |
