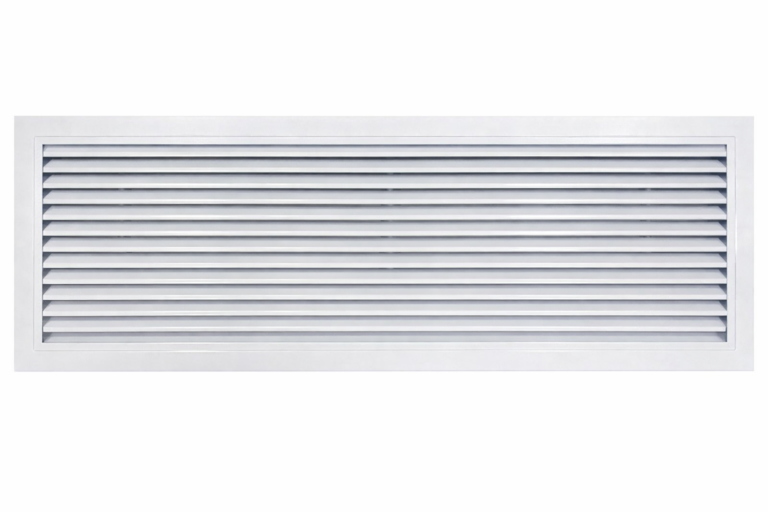

Exhaust Air Louver
The ATOROZ Exhaust Air Louver is engineered for efficient air extraction in commercial, industrial, and residential ventilation systems. Constructed from high‑grade aluminium alloy and finished with a durable white powder coating, it offers excellent corrosion resistance, long service life, and a clean architectural appearance.
The louver features 1‑inch (25 mm) blades set at a 45‑degree angle with 21 mm spacing, ensuring optimal airflow performance while minimizing visibility into the duct. Its slim 37 mm height profile and precise fabrication make it ideal for façade mounting, mechanical rooms, and general HVAC exhaust applications.
Technical Specifications
- Product Type: Exhaust Air Louver
- Brand: ATOROZ
- Material: Aluminium Alloy
- Finish: Powder Coated White
- Frame: Fixed Frame / Fixed Style
- Application: Air Exhaust / Ventilation
- Blade Size: 1 inch / 25 mm
- Blade Angle: 45° fixed
- Blade Spacing: 21 mm
- Blade Orientation: Horizontal
Dimensions
- Face Size:
- Length: 1060 mm
- Width: 360 mm
- Neck Size (Duct Opening):
- Length: 1000 mm
- Width: 300 mm
- Overall Height (H): 37 mm
Performance & Features
- Optimized Airflow: Angled blades allow smooth exhaust flow with reduced pressure drop
- Weather Protection: Blade angle helps limit rainwater entry
- Corrosion Resistant: Aluminium alloy with powder coating ensures long‑term durability
- Lightweight Construction: Easy to install on walls, ducts, or mechanical housings
- Clean Aesthetic: Suitable for architectural applications
*** Any requirements of other different sizes will be customized made, on request.
