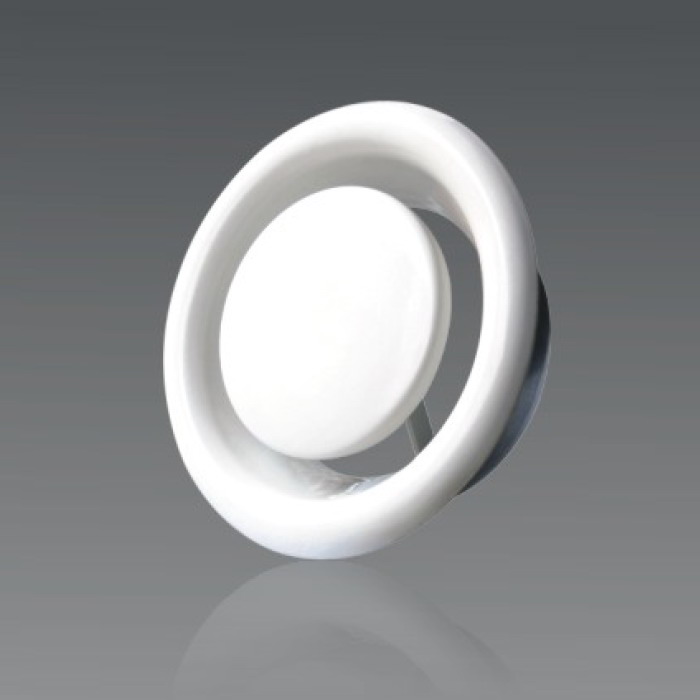

Steel Disk Air Valve
Materials:
– Steel Sheet thickness 1mm
– Powder coated, Colour White RAL9010
Application
– Air exhaust for indoor use
– Suitable for high humidity and hot air (Kitchen, Bathroom, etc..)
– Low noise
– Easy to remove and clean up
– Adjustable disk to have an idea for volume control air flow
– Recessed Type

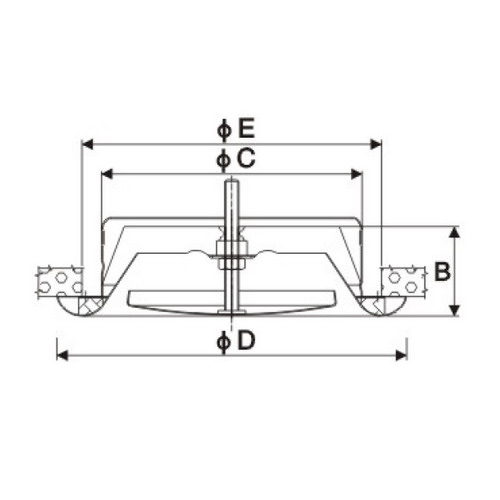

Specification
| Code No. | C Diameter Actual Neck (mm) |
E Diameter Listed Neck (mm) |
D Diameter Face (mm) |
B Height (mm) |
| SDAV-100 | 97.50 | 100 | 138 | 40 |
| SDAV-125 | 122.50 | 125 | 164 | 46 |
| SDAV-150 | 147.50 | 150 | 202 | 50 |
| SDAV-160 | 157.50 | 160 | 211 | 54 |
| SDAV-200 | 197.50 | 200 | 248 | 63 |
