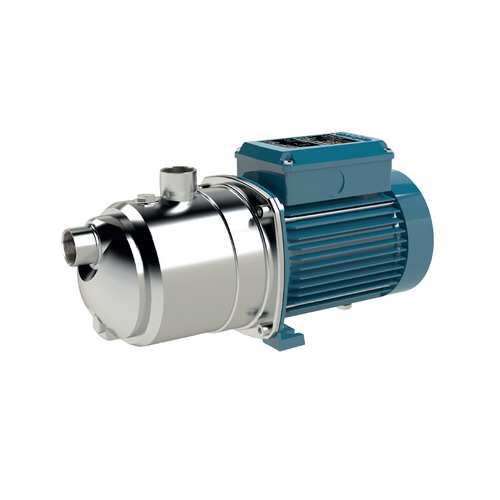

MXP – Horizontal multi-stage
Construction
Horizontal Multi-Stage Close Coupled Pumps. One-piece chrome-nickel stainless steel pump body, open on one side (barrel
casing), with front suction port above the pump axis and radial delivery port at the top. Stages in Noryl.
Applications
For water supply systems.
For domestic use, for garden use and irrigation.
Operating conditions
Liquid temperature: 0 °C to +50 °C.
Ambient temperature up to 40° C.
Maximum permissible pressure in the pump casing: 8 bar.
Continuous duty.
Motor
2-pole induction motor, 50 Hz (n ≈ 2800 1/min).
MXP: three-phase 230/400 V ± 10%.
MXPM: single-phase 230 V ± 10%, with thermal protector.
Capacitor inside the terminal box. Insulation class F. Protection IP 54.
Motor set up for operation with 1.1 kW inverter.
IE2 efficiency class for single-phase motors.
IE3 efficiency class for three-phase motors (IE2 up to 0,65 kW).
Constructed in accordance with EN 60034-1; EN 60034-30-1.
EN 60335-1, EN 60335-2-41.
Materials
Pump casing: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
Casing cover: Chrome-nickel steel 1.4301 EN 10088 (AISI 304)
Pump shaft: Steel 1.4104 EN 10088 (AISI 430F)
Plug: Chrome-nickel steel 1.4305 EN 10088 (AISI 303)
Stage casing: PPO-GF20 (Noryl)
Impeller: PPO-GF20 (Noryl)
Mechanical seal: Carbon – Ceramic – NBR
