LPI® Lightning Strike Recorder Tester LSR-TESTER
Product Description
LPI® Lightning Strike Recorder Tester (LSR-TESTER) is a high current device designed to trigger a reading on an LPI Lightning Strike Recorder (LSR1 or LSR2, LSR-MAX hereafter simply referred to as “LSR”). The tester is light, compact, and is powered by 8 x AA NiMH rechargeable batteries.
Features
• Ideal for maintenance and testing of LPI® Lightning Strike Recorders
• Simple operation
• Portable

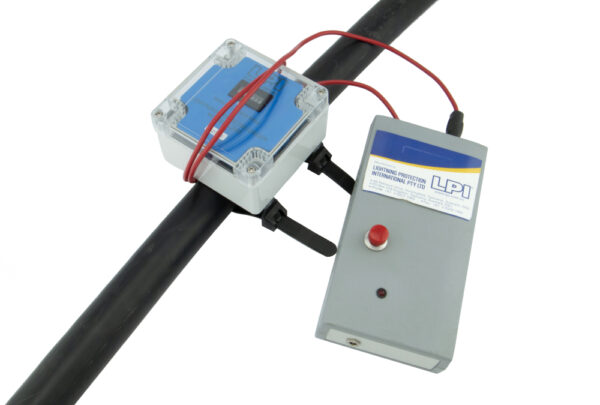

1. To test the LSR, the supplied ‘pulse cable’ is positioned parallel to the down-conductor, through the mounting saddles as shown in Figure 3.
2. Complete the loop around the LSR, making sure that pulse cable is positioned vertically across the top of the LSR as shown in Figure 4.
3. Holding down the red button initiates the impulse circuit charging and firing process. Correct charging operation is indicated by the illumination of the red LED, as shown in Figure 5.
4. After a period of 10-15 seconds an audible ‘clunk’ should be heard. This indicates that the charging process has finished and a current pulse has been sent through the pulse cable. If the LSR and LSR Tester are working correctly, the strike count on the LSR will increase by one (1).
If the LED fails to light when pressing the red button, or if no ‘clunk’ is heard after a period longer than 30 seconds then the batteries need to be recharged using the supplied charger. The charger unit has two indication LEDs to indicate charger power and charging status.
Press and hold the charging button for up to 1 second to start charging the battery. The LED will indicate RED. Once a battery has been fully charged, the charging LED will turn GREEN.
| Product Code | LSR-TESTER |
| Description | Lightning Strike Recorder Tester |
| Impulse Output | 2 kA Peak Simulated Lightning Impulse |
| Open Circuit Output |
55 Volts |
| Time Between Impulses |
20 seconds |
| Display | Red “Testing” LED Indicator |
| Dimensions | 190 (L) x 100 (W) x 35 mm (H) |
| Mounting | Portable Unit No mounting required |
| Construction | Polycarbonate Enclosure, IP 30 rating |
| Colour | Light Grey |
| Weight | 0.58 kg |
| Working Temperature |
-12ºC to 65ºC |
| Batteries | 8 x AA 2000 mAh NiMH Rechargeable Recharge time up to 16 hours |
