Earth Points
LPI earth points are designed for use in reinforced concrete foundations and offer a convenient earth system connection point. Earth points supplied with tails allows for earthing to the building frame (foundations or rebar) in a safe and simple method.
The use of LPI earth points enables the installer to locate the complete earthing system within the structure and provides a location free from possible damage or unauthorised disconnection. LPI earth points are manufactured from a copper alloy and provide a current carrying capacity equal to that of the conductor or stud. Earth points will not corrode or loosen over time.

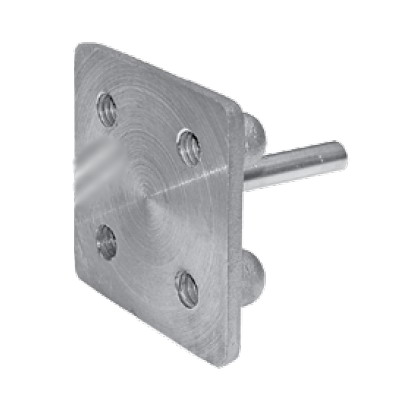

| Product Code | EP1M12 | EP2M12 | EP4M12 |
| Description | Earth Point, 1 Hole, M12 | Earth Point, 1 Holes, M12 | Earth Point, 4 Holes, M12 |
| Materials | UNS-C38000 (High Strength Copper Alloy) |
UNS-C38000 (High Strength Copper Alloy) |
UNS-C38000 (High Strength Copper Alloy) |
| Number of Holes | 1 | 2 | 4 |
| Size | 40 x 80 mm | 83 x 83 mm | |
| Stem Diameter | 11 mm | 10.5 mm | 10.7 mm |
| Thread Diameter | M12 | M12 | M12 |
| Weight | 300 g | 190 g | 340 g |
