LPI® SG Surge Protection Devices
Product Description

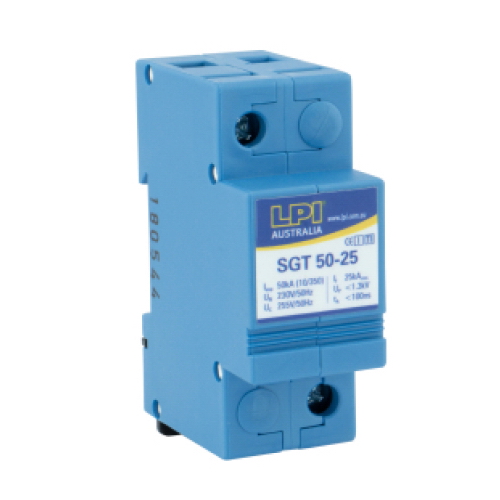

The LPI® Spark Gap Protector consists of high-performance, encapsulated spark gap modules for P-N and N-E. The Spark Gap Protector comes in 3 ranges: 1-Phase, 2-Phase and 3-Phase.
Each SG provides Class I surge protection rated for 50 kA, 10/350 μs (135 kA, 8/20 μs) between P-N, and 100 kA, 10/350 μs (150 kA, 8/20 μs) between N-E.
The protector is designed for installation in mains power switchboards and distribution boards in Lightning Protection Zones 0 and 1 per IEC 62305-4. The unit is supplied with IEC 61643-11 Class I Spark Gap Surge Diverters which provide the most effective surge protection with low let-through voltage.
Standard Features
• High performance surge protector for an operating voltage of 220 – 240 V AC
• Easy Installation
• DIN rail mounting
