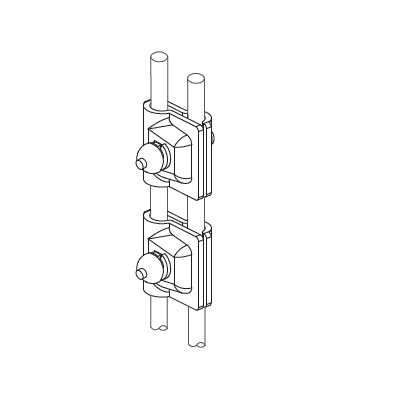

Shear Bolt Connector
Stainless Steel
Shear Bolt Connector provide connection for cross joint or parallel joint.
The shear bolt provide quick installation and the superior of connection.
Material
Stainless Steel 304
Tested Standard
IEC 62561 Part 1
TIS 3024 Part 1
Application
Connect Galvanized / Stainless Steel to round conductor.
| Code No. | Cable Size (mm) |
Torque (N.m) |
Bolt Size (mm) |
Weight (Kg) |
| LCAC-SS-10-M10-N | 8-10 | 26 | M10x35 (1.5) | 0.11 |
