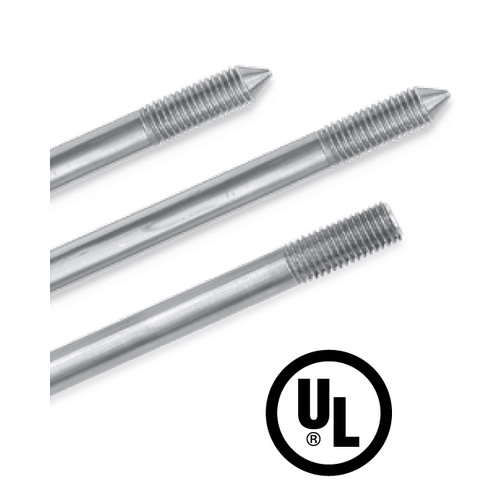

LPI® Copper Bonded Earth Rod (254 micron) UL 467, Threaded
Copperbonded earth rods are made from high tensile low carbon steel and each rod is manufactured by molecularly bonding 99.9% pure electrolytic copper to the low carbon steel core in accordance with national and international standards such as UL 467. Threads are rolled onto the rod ensuring an even copper covering which eliminates the risk of chipping whilst driving.
• Standards: UL 467
• Copper Thickness: Min. 254 micron (0.254 mm)
• Type: Threaded UNC
| Threaded Copperbonded Earth Rods – CBER | ||||||
| Earth Rod | Rod Diameter | Threaded Diamter | Weight per Rod | Bundle | Ordering | |
| Length (m) | (mm) | (inch) | mm | (kg) | Size | Code |
| 1.2 | 14.3 | 5/8″ UNC | 15.3 | 1.54 | 10 | CBER1214 |
| 3.0 | 14.3 | 5/8″ UNC | 15.3 | 3.84 | 10 | CBER3014 |
| 1.2 | 17.3 | 3/4″ UNC | 19 | 1.92 | 10 | CBER1217 |
| 3.0 | 17.3 | 3/4″ UNC | 19 | 5.73 | 10 | CBER3017 |
