CAT – Guardian Lightning Protection System 5

LPI® Guardian Lightning Protection System 5

LPI’s award-winning families of enhanced air terminals have the following key characteristics:
• First company to introduce coronaminimising terminals with optimised blunt design and four independent panels;
• Extensive field experience with more than 50,000 installations over 15+ years in more than 75 countries around the world;
• Air terminal families designed to meet direct-strike placement methodologies in compliance with various international standards; and
• Proven technology based on international research findings, modelling and field testing.

LPI’s GuardianTM System 5 provides a purpose-designed package for directstrike lightning protection.

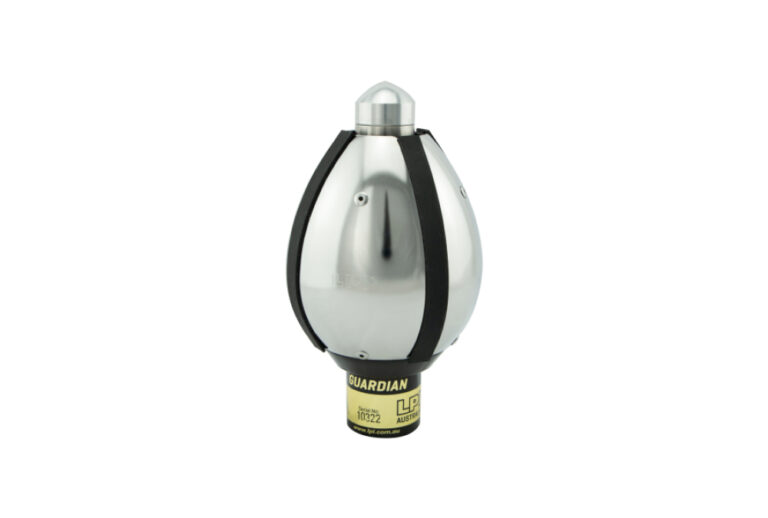

1. A Family of LPI CAT (Controlled Advanced Triggering) series air terminals.
2. A Fibreglass Reinforced Plastic (FRP) mast which provides an insulated mast for mounting of LPI CAT series air terminals.
3. A purpose designed LPI High Voltage Shielded Cable (HVSC Plus) specifically designed for the conveying of lightning energy to ground. Alternatively, depending on the local codes and applications, other materials such as flat copper or aluminium tape, smooth weave conductor or stranded conductor may be used.
4. LPI Lightning Strike Recorder (LSR2) which confirms system efficiency and effectiveness.
5. An earthing system consisting of earth rods, clamps, copper tapes and earth enhancing compounds such as LPI RESLO, SRIM PLUS or GRIP.

LPI’s Guardian™ CAT System 5
• Fully Tested Air Terminals in Compliance with IEC 62561-2
• Family of Stainless Steel Air Terminals catering for all installation heights
• Easy to Install
• All Guardian CAT Terminals utilise a blunt finial tip for corona minimisation
• Cost Effective Lightning Protection
• Free Lightning Protection Designs & Risk Assessments Available on Request
• For connection to HVSC Plus or 2-inch GI pipe
