GPLUS – Guardian Plus Air Terminal

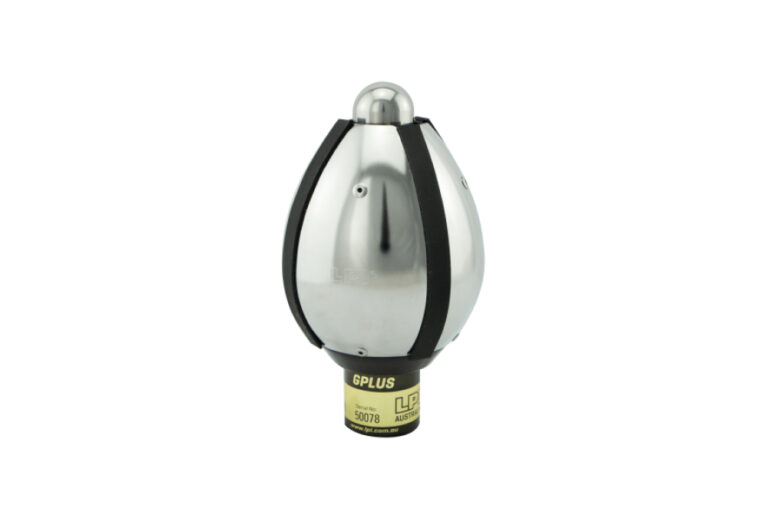

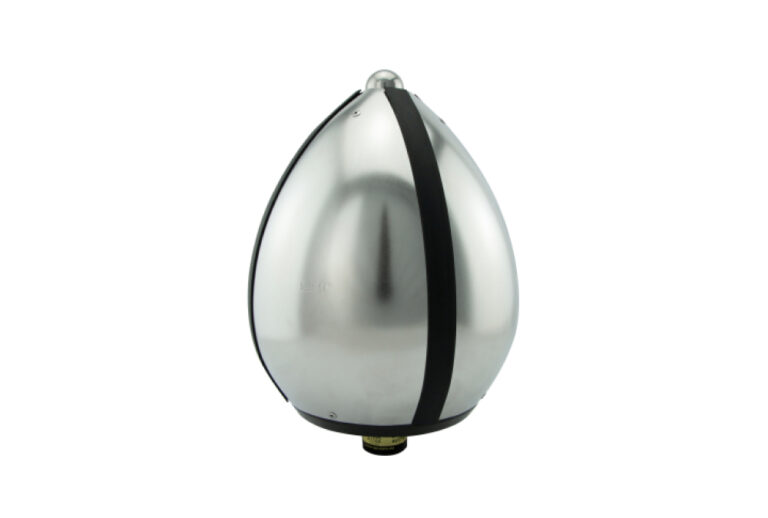

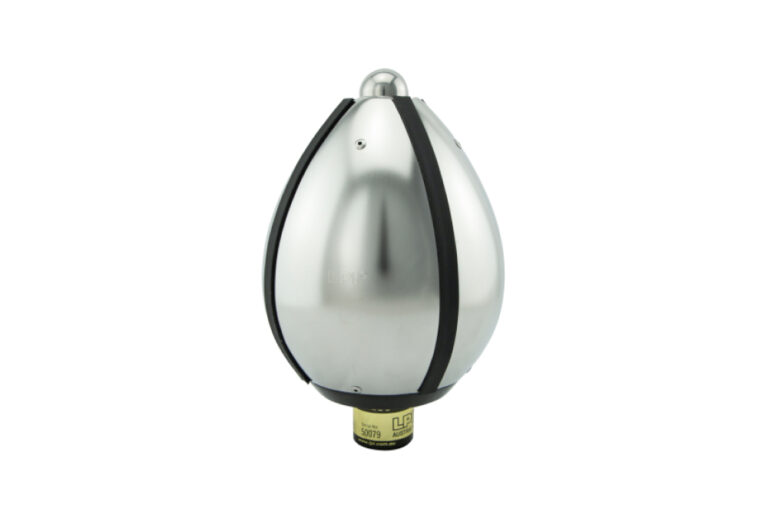

Guardian Plus Air Terminal Range

The new Guardian Plus air terminal range has evolved from the original Guardian CAT design and has been developed after taking into account the latest international research. Key elements include the effect of space charge and air terminal geometry, characteristics of long sparks, lightning characteristics and statistics, and the lightning attachment process itself.
* The design of the Guardian Plus air terminals is based on detailed modelling and calculations which optimise corona performance in the quasi-static phase of a thunderstorm
* Three domes sizes to cater for all practical installation scenarios
* Tip radius of curvature and tip protrusion is optimised to minimise corona discharge
* Robust materials to achieve long service life

LPI® Guardian Plus Protection Solution for HV Power Facilities and Slender Structures

• Placement of the Guardian Plus Air Terminals uses a methodology based on the Leader Inception Theory per IEEE Std. 998
• Family of Stainless Steel Air Terminals
• Easy to Install
• Manufactured to a Design Achieving Compliance with IEC 62651-2
• Cost Effective Lightning Protection
• Site Specific Design Calculation Customised to Suit Individual Projects
• For connection to HVSC Plus or 2 inch GI pipe
